325121-11-0
ActiveCurtis Industries

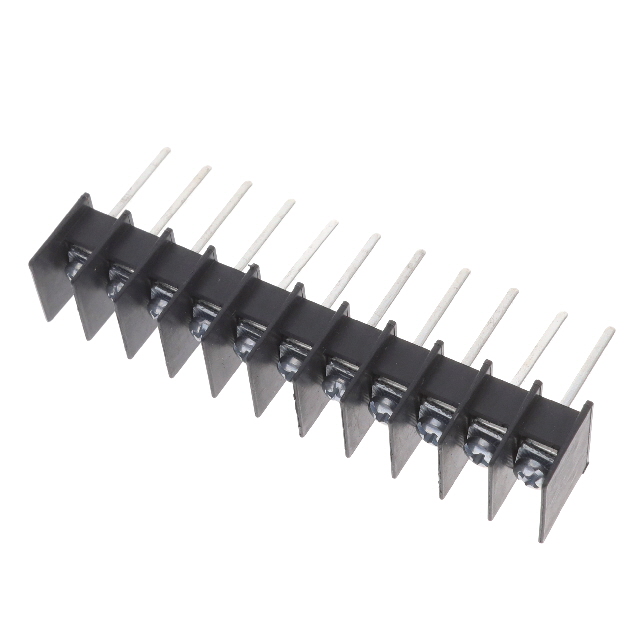

CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325121-11-0
ActiveCurtis Industries
CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325121-11-0 | 325121 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Wire Wrap | Wire Wrap |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 11 | 3 - 25 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 11 | 3 - 25 |
| Number of Wire Entries | - | 22 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.56 | |
| 10 | $ 4.38 | |||
| 30 | $ 4.17 | |||
| 50 | $ 3.78 | |||
| 100 | $ 3.76 | |||
325121 Series
CONN BARRIER STRP 19CIRC 0.325"
| Part | Top Termination | Number of Wire Entries | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Number of Circuits | Mounting Type | Voltage Rating | Pitch [x] | Pitch [x] | Barrier Type | Number of Rows | Material - Insulation | Operating Temperature | Material Flammability Rating | Terminal Block Type | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325121-19-0 | Screws | 19 | Wire Wrap | 14 AWG | 22 AWG | 15 A | 19 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | |
Curtis Industries 325121-07-0 | Screws | 7 | Wire Wrap | 14 AWG | 22 AWG | 15 A | 7 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | |
Curtis Industries 325121-03-0 | Screws | 3 | Wire Wrap | 14 AWG | 22 AWG | 15 A | 3 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | |
Curtis Industries 325121-13-0 | Screws | 13 | Wire Wrap | 14 AWG | 22 AWG | 15 A | 13 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | |
Curtis Industries 325121-09-0 | Screws | 9 | Wire Wrap | 14 AWG | 22 AWG | 15 A | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | ||
Curtis Industries 325121-11-0 | Screws | 11 | Wire Wrap | 14 AWG | 22 AWG | 15 A | 11 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | |
Curtis Industries 325121-14-0 | Screws | 14 | Wire Wrap | 14 AWG | 22 AWG | 15 A | 14 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | |
Curtis Industries 325121-17-0 | Screws | 17 | Wire Wrap | 14 AWG | 22 AWG | 15 A | 17 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | |
Curtis Industries 325121-05-0 | ||||||||||||||||||
Curtis Industries 325121-22-0 | Screws | Wire Wrap | 14 AWG | 22 AWG | 15 A | 22 | Through Hole | 300 VDC | 8.26 mm | 0.325 in | 2 Wall (Dual) | 1 | Polypropylene (PP) | 105 C | UL94 V-0 | Barrier Block | 22 |
Description
General part information
325121 Series
11 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
