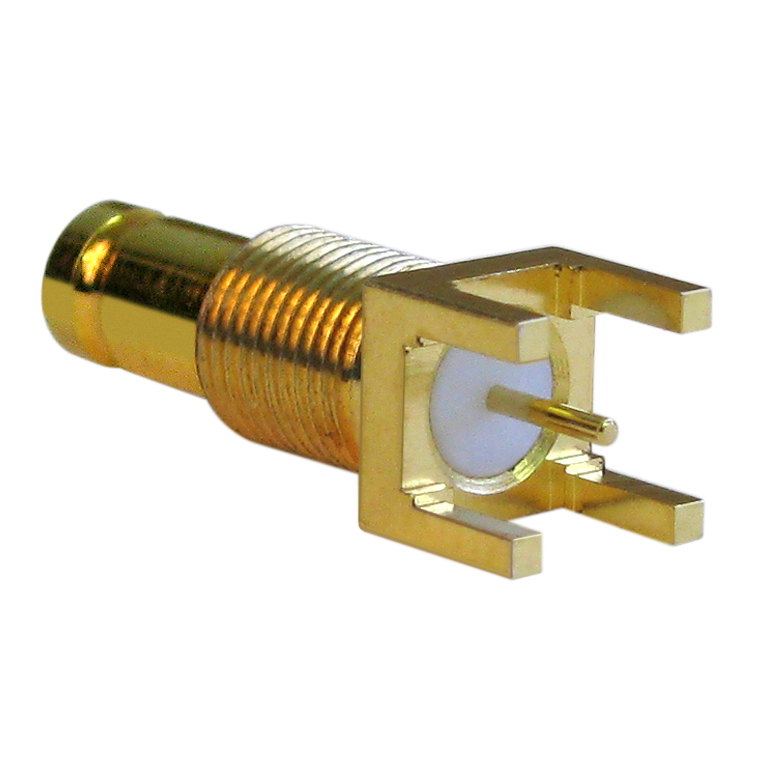

282124-75

Active

Amphenol RF

1.0/2.3 STRAIGHT PCB JACK, BULKH

Search across all available documentation for this part.

Active

Amphenol RF

1.0/2.3 STRAIGHT PCB JACK, BULKH

Technical Specifications

Parameters and characteristics for this part

Specification	282124-75

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Material	Mounting Type	Connector Type	Center Contact Plating	Dielectric Material	Includes	Center Contact Material	Contact Termination	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Mounting Feature	Mating Cycles	Frequency - Max [Max]	Fastening Type	Housing Color	Shield Termination	Number of Ports	Connector Style
Amphenol RF 282124-75	Brass	Panel Mount Through Hole	Female Socket Jack	Gold	Polytetrafluoroethylene (PTFE)	1 Connector 1 Nut	Beryllium Copper	Solder	75 Ohms	-65 ░C	165 °C	Gold	Bulkhead - Front Side Nut	500	4 GHz	Push-Pull	Gold	Solder	1	1.0/2.3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.81

General part information

1.0/2.3 Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole Solder
