IPT60R065S7XTMA1

Active

Infineon Technologies

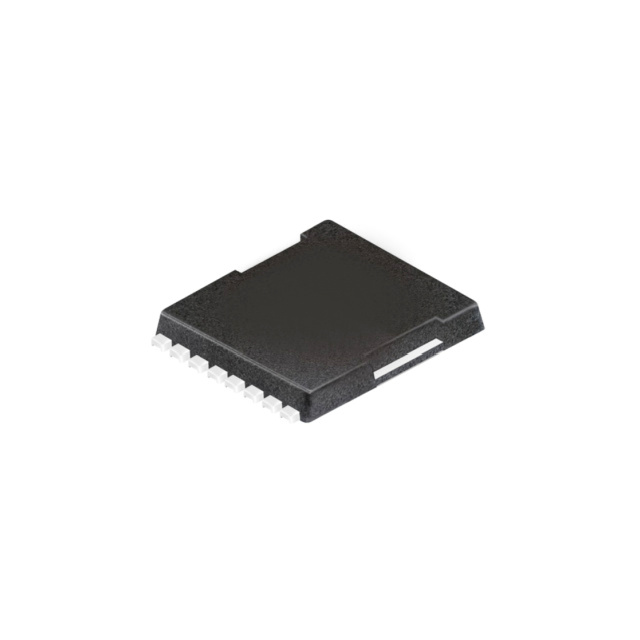

INFINEON’S 600V COOLMOS™ S7 SUPERJUNCTION POWER MOSFET IPT60R065S7 FOR LOW SWITCHING FREQUENCY APPLICATIONS IN TO-LEADLESS PB-FREE PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IPT60R065S7XTMA1

Active

Infineon Technologies

INFINEON’S 600V COOLMOS™ S7 SUPERJUNCTION POWER MOSFET IPT60R065S7 FOR LOW SWITCHING FREQUENCY APPLICATIONS IN TO-LEADLESS PB-FREE PACKAGE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT60R065S7XTMA1

Current - Continuous Drain (Id) @ 25°C	8 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	12 V, 12 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	51 nC
Input Capacitance (Ciss) (Max) @ Vds	1932 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerSFN
Power Dissipation (Max)	167 W
Rds On (Max) @ Id, Vgs	65 mOhm
Supplier Device Package	PG-HSOF-8-2
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4.5 V

IPT60R065 Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Technology	Vgs (Max)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Supplier Device Package	Drain to Source Voltage (Vdss)	FET Type	Power Dissipation (Max)
Infineon Technologies IPT60R065S7XTMA1	Surface Mount	-55 °C	150 °C	51 nC	12 V 12 V	8-PowerSFN	8 A	MOSFET (Metal Oxide)	20 V	4.5 V	1932 pF	65 mOhm	PG-HSOF-8-2	600 V	N-Channel	167 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.44
		10	$ 4.34
		100	$ 3.14
		500	$ 2.66
	Digi-Reel®	1	$ 6.44
		10	$ 4.34
		100	$ 3.14
		500	$ 2.66
	Tape & Reel (TR)	2000	$ 2.66
Newark	Each (Supplied on Cut Tape)	1	$ 2.92
		10	$ 2.71

Description

General part information

IPT60R065 Series

The 600V CoolMOS™ S7 Superjunction MOSFET (IPT60R065S7) is ideally suited for low frequency switching applications. The design of the IPT60R065S7 enables low conduction losses as well as better thermal resistance. This 600V CoolMOS™ SJ MOSFET targets applications such as active bridge rectifiers, inverter stages, in-rush relays,PLCs, HV DC lines, powersolid state relaysand solid state circuit breakers. The 600V CoolMOS™ S7 SJ MOSFET in TOLL (Pb-free) package benefits in increased energy efficiency and erases heat sink in solid state design.
