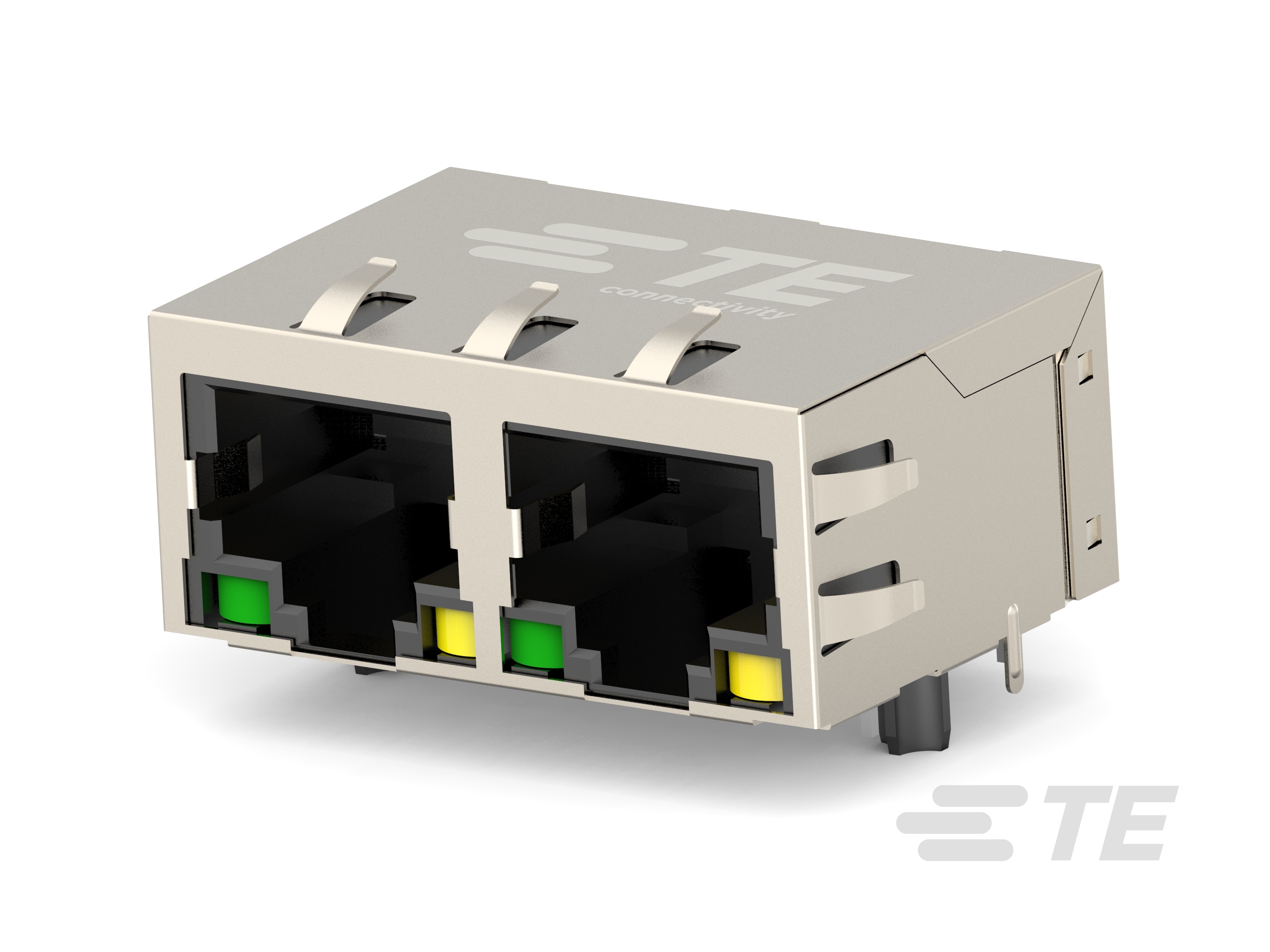

RJ45 JACK MAG. POE 10/100 LED 1X2-2337994-4

2337994-4

Active
TE Connectivity AMP Connectors

RJ45 JACK MAG. POE 10/100 LED 1X2

Find alt
RJ45 JACK MAG. POE 10/100 LED 1X2-2337994-4

2337994-4

Active
TE Connectivity AMP Connectors

RJ45 JACK MAG. POE 10/100 LED 1X2

Find alt

Description

General part information

2337994 Series

RJ45 with Integrated Magnetics Connector, Multiple Ports, 1 x 2, Jack, Shielded, Cat 5, Standard - Latch Down, 8 Position, Industrial RJ45 Mag Jack

Technical Specifications

Parameters and characteristics for this part

Specification2337994-4
ApplicationsAutoMDIX, 10/100 Base-T, Power over Ethernet (PoE)
Connector TypeRJ45
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialCopper Alloy
FeaturesBoard Guide
Height Above Board0.539 in
Housing MaterialLiquid Crystal Polymer, LCP
LED ColorGreen - Yellow
Mounting TypeThrough Hole
Number of Cores per Jack4
Number of Ports2
Number of Rows1
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Orientation Angle90 °
Orientation DirectionRight
Shield MaterialBrass
ShieldingEMI Finger, Shielded
Tab DirectionDown
TerminationSolder
