P082D-27CBR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

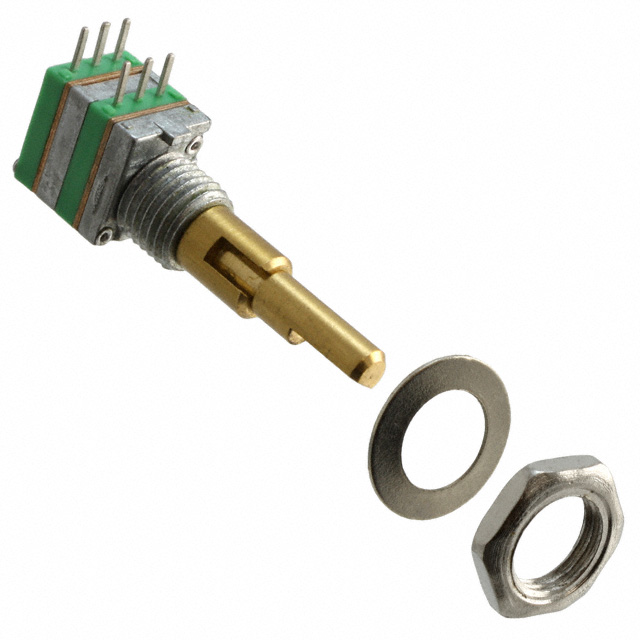

10k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins

Technical documentation and resources

Parameters and characteristics commom to parts in this series

POT 50K OHM 1/40W PLASTIC LOG

Part	Actuator Length [x]	Actuator Length [x]	Bushing Thread	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Taper	Resistive Material	Adjustment Type	Number of Gangs	Actuator Type	Resistance (Ohms)	Termination Style	Tolerance	Number of Turns	Rotation	Built in Switch	Power (Watts)	Power (Watts)	Actuator Diameter	Actuator Diameter	Resistance (Ohms)	Bushing Thread	Power (Watts)
TT Electronics/BI P082D-16CAR50K	0.827 in	21 mm	M6 x 0.75	9.35 mm	7.7 mm	0.368 "	0.303 "	Logarithmic	Conductive Plastic	Side Adjustment	2	Slotted	50 kOhms	PC Pins	20 %	1	300 ░		0.025 W	0.025 W	0.138 in, 3.5 mm	0.197 in, 5 mm
TT Electronics/BI P082D-27CBR10K	0.827 in	21 mm	M7	9.35 mm	7.7 mm	0.368 "	0.303 "	Linear	Conductive Plastic	Side Adjustment	2	Flatted		PC Pins	20 %	1	300 ░		0.05 W		0.138 in, 3.5 mm	0.197 in, 5 mm	10k	0.75	50 mW
