R20GRN-5-0080
ActiveBivar Inc.

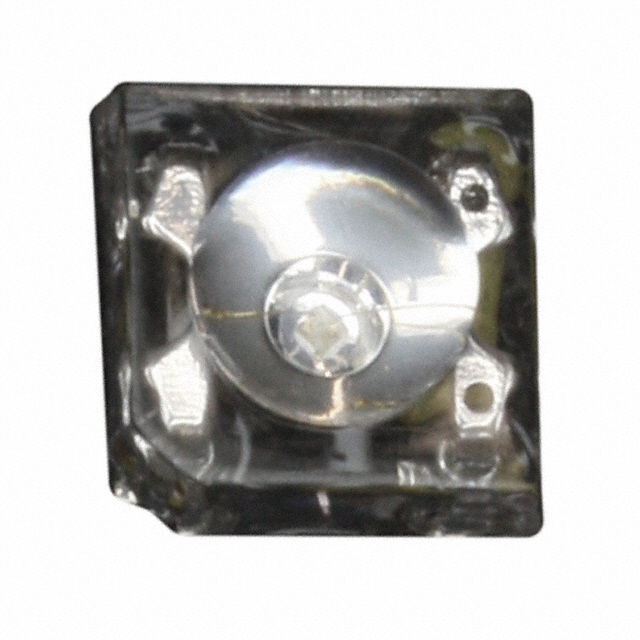

LED, THROUGH HOLE, 7.6MM X 7.6MM GREEN, 6000MCD, WATER CLEAR LENS, 80 DEG VIEWING ANGLE / TUBE
R20GRN-5-0080
ActiveBivar Inc.
LED, THROUGH HOLE, 7.6MM X 7.6MM GREEN, 6000MCD, WATER CLEAR LENS, 80 DEG VIEWING ANGLE / TUBE
Description
General part information
R20GRN-5-0080 Series
Green 521nm LED Indication - Discrete 3.4V 4-DIP (0.200", 5.08mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | R20GRN-5-0080 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 6.9 mm |
| Lens Color | Colorless |
| Lens Diameter | 5 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 3000 mcd |
| Mounting Type | Through Hole |
| Package Length | 5.08 mm |
| Package Name | 4-DIP |
| Package Width | 5.08 mm |
| Size / Dimension Length | 7.6 mm |
| Size / Dimension Width | 7.6 mm |
| Viewing Angle | 80 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength - Dominant | 521 nm |
