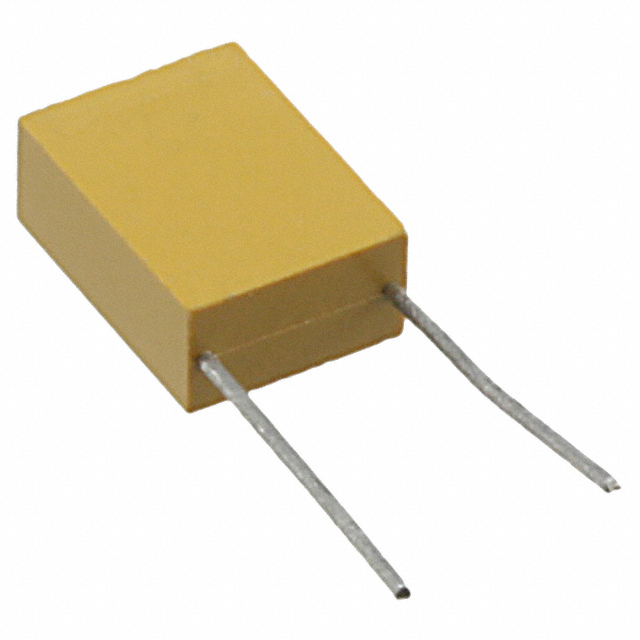

T370C105K035AS
ActiveKEMET
CAP TANT 1UF 10% 35V RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
T370C105K035AS
ActiveKEMET
CAP TANT 1UF 10% 35V RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T370C105K035AS |
|---|---|
| Capacitance | 1 µF |
| ESR (Equivalent Series Resistance) | 8 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 5.72 mm |
| Height - Seated (Max) [Max] [z] | 0.225 in |
| Lead Spacing | 0.15 in |
| Lead Spacing | 3.81 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.185 " |
| Size / Dimension [x] | 4.7 mm |
| Size / Dimension [y] | 0.075 in |
| Size / Dimension [y] | 1.91 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.30 | |
| 10 | $ 11.01 | |||
| 50 | $ 9.27 | |||
| 100 | $ 8.72 | |||
| 500 | $ 7.79 | |||
| 1000 | $ 7.50 | |||
Description
General part information
T370C Series
1 µF Molded Tantalum Capacitors 35 V Radial 8Ohm @ 100kHz
