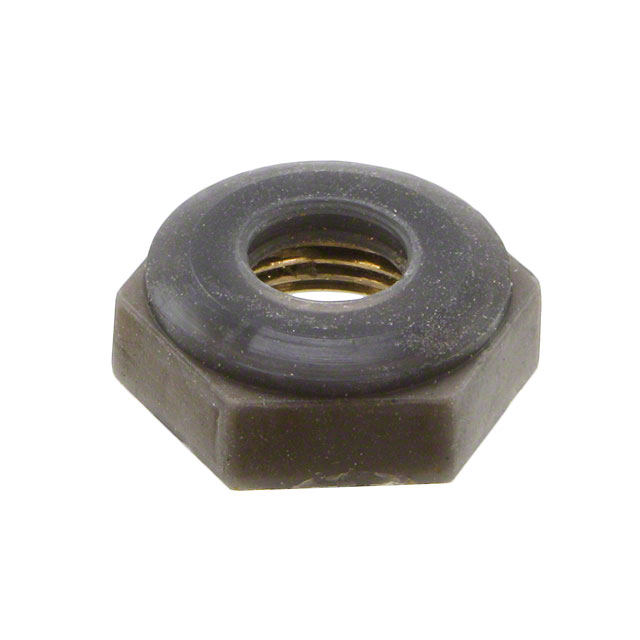

C 1332/41 2501

Active

APM HEXSEAL

ROTARY SHAFT SEAL GRAY

Search across all available documentation for this part.

Active

APM HEXSEAL

ROTARY SHAFT SEAL GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C 1332/41 2501

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Color	Gray
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-62 °C
Size / Dimension [z]	0.219 in
Size / Dimension [z]	5.56 mm
Thread Size	M9x0.75
Type	Rotary Shaft Seal

ROTARY SHAFT SEAL GRAY

Part	Ingress Protection	Type	Operating Temperature [Min]	Operating Temperature [Max]	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [z]	Material	Color	Mounting Feature	Thread Size	Actuator Diameter	Actuator Diameter [diameter]
APM HEXSEAL C 1332/41 2501	IP66/IP68	Rotary Shaft Seal	-62 °C	204 °C	Multiple Series	0.219 in	5.56 mm	Silicone Rubber	Gray	Front of Panel	M9x0.75	6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY SHAFT SEAL GRAY
