Q-2J00S000H018i

Active

Amphenol Custom Cable

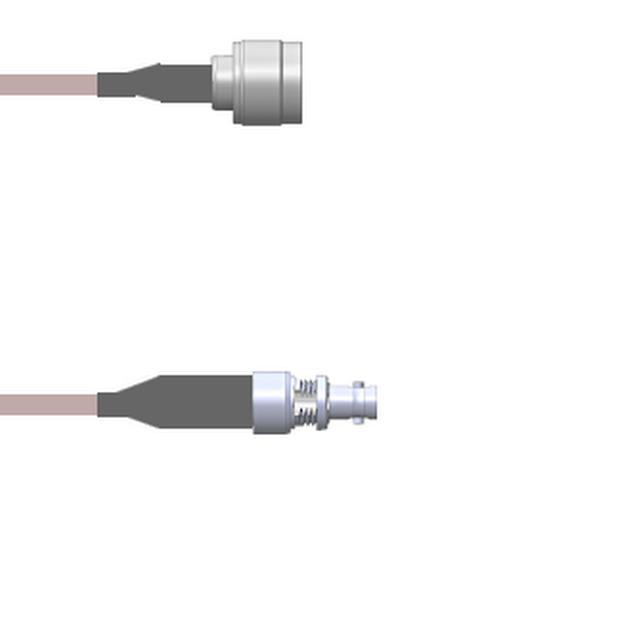

CBL ASSY HDBNC-NTYPE JCK-PLG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2J00S000H018i

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE JCK-PLG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2J00S000H018i

1st Connector	HD-BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2J00S0 Series

Part	1st Connector	Cable Type	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Type	Color	Length	Length	Length	Features	1st Contact Gender	Overall Impedance	Style	2nd Connector	2nd Contact Gender	1st Connector Mounting Feature	Length [x]	Length [x]
Amphenol Custom Cable Q-2J00S000H084i	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	84 in	2.1 m	7 ft	Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H001M	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	39.4 in	1 m	3.3 ft	Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H072i	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	72 in	1.8 m	6 ft	Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H003M	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	118.1 in	3 m	9.8 '	Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H018i	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper				Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2J00S000H1.5M	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	59.1 in	1.5 m	4.9 ft	Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H060i	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	5 '	1.5 m	5 ft	Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H2.5M	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	98.4 in	2.5 m	8.2 '	Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H009i	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	9 "	228.6 mm		Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2J00S000H.75M	HD-BNC Jack	RG-142	Panel Mount	6000 MHz	Free Hanging (In-Line)	Copper	29.53 "	750 mm		Shielded	Female	50 Ohms	HD-BNC to N-Type	N-Type Plug	Male	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.81
		25	$ 81.19
		50	$ 79.56
		100	$ 77.94
		250	$ 76.32

Description

General part information

Q-2J00S0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-142 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
