627-M25-222-WN1

Active

EDAC Inc.

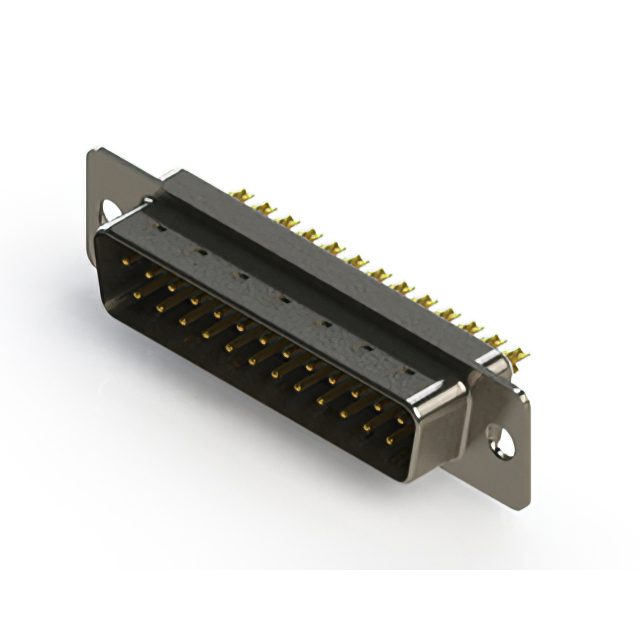

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-M25-222-WN1

Active

EDAC Inc.

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-M25-222-WN1

Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

627-M25 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Finish Thickness	Contact Finish	Contact Type	Contact Material	Number of Rows	Shell Material, Finish	Color	Current Rating (Amps)	Mounting Type	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Connector Style	Material Flammability Rating	Flange Feature	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-M25-222-WN1	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Flash	Gold	Signal	Copper Alloy	2	Nickel Plated Steel	White	5 A	Free Hanging (In-Line)	Male Pins Plug	B DB	3	Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side
EDAC Inc. 627-M25-323-WN2	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T		Gold	Signal	Copper Alloy	2	Nickel Plated Steel	White	5 A	Through Hole	Male Pins Plug	B DB	3	Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder	15 µin	0.38 µm
EDAC Inc. 627-M25-320-LT4	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T		Gold	Signal	Copper Alloy	2		Blue	5 A	Through Hole	Male Pins Plug	B DB	3	Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder	15 µin	0.38 µm
EDAC Inc. 627-M25-323-WN5	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T		Gold	Signal	Copper Alloy	2	Nickel Plated Steel	White	5 A	Through Hole	Male Pins Plug	B DB	3	Board Lock Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder	15 µin	0.38 µm
EDAC Inc. 627-M25-322-WN1	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T		Gold	Signal	Copper Alloy	2	Nickel Plated Steel	White	5 A	Free Hanging (In-Line)	Male Pins Plug	B DB	3	Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side		15 µin	0.38 µm
EDAC Inc. 627-M25-220-GN2	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Flash	Gold	Signal	Copper Alloy	2	Nickel Plated Steel	Green	5 A	Through Hole	Male Pins Plug	B DB	3	Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder
EDAC Inc. 627-M25-323-GT6	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T		Gold	Signal	Copper Alloy	2		Green	5 A	Through Hole	Male Pins Plug	B DB	3	Board Lock Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder	15 µin	0.38 µm
EDAC Inc. 627-M25-223-WT6	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Flash	Gold	Signal	Copper Alloy	2		White	5 A	Through Hole	Male Pins Plug	B DB	3	Board Lock Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder
EDAC Inc. 627-M25-323-WN6	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T		Gold	Signal	Copper Alloy	2	Nickel Plated Steel	White	5 A	Through Hole	Male Pins Plug	B DB	3	Board Lock Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder	15 µin	0.38 µm
EDAC Inc. 627-M25-223-GN6	-55 °C	125 °C	Polyamide (PA6T) Nylon 6T	Flash	Gold	Signal	Copper Alloy	2	Nickel Plated Steel	Green	5 A	Through Hole	Male Pins Plug	B DB	3	Board Lock Grounding Indents Shielded	D-Sub	UL94 V-0	4-40 Board Side	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.16
		10	$ 5.57
		25	$ 5.26
		50	$ 5.13
		100	$ 4.87
		250	$ 4.36
		450	$ 4.10
		950	$ 3.59
		2400	$ 3.41

Description

General part information

627-M25 Series

25 Position D-Sub Plug, Male Pins Connector
