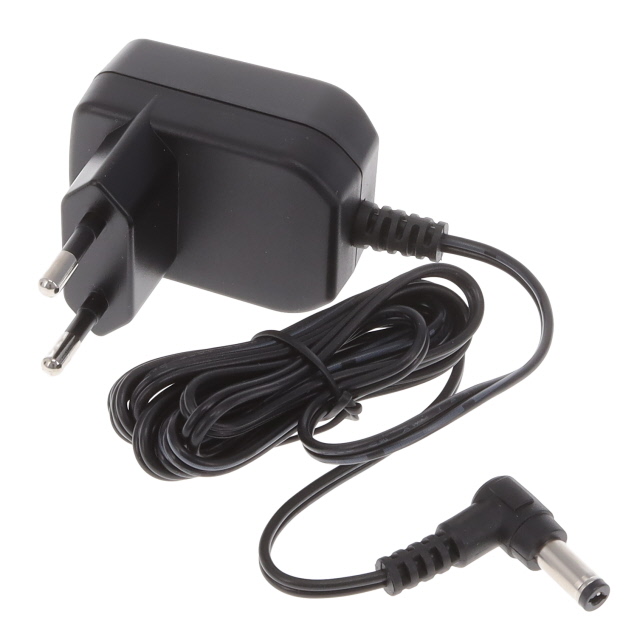

TRE06S090-E-01A03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 9V 5.9W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRE06S090-E-01A03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 9V 5.9W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRE06S090-E-01A03 VI

Applications	ITE (Commercial)
Approval Agency	cULus, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	650 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	KSC 8305
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	5.9 W
Region Utilized	Europe
Size / Dimension [x]	2.05 "
Size / Dimension [x]	52 mm
Size / Dimension [y]	1.42 in
Size / Dimension [y]	36 mm
Size / Dimension [z]	25.2 mm
Size / Dimension [z]	0.99 "
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

TRE06S Series

Part	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Input Connector	No Load Power Consumption [Max]	Region Utilized	Current - Output (Max) [Max]	Applications	Approval Agency	Voltage - Output	Efficiency	Polarization	Standard Number	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Weight	Weight
Cincon Electronics Co. LTD TRE06S120-A-01A03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	NEMA 1-15P	75 mW	North America	500 mA	ITE (Commercial)	CE cULus FCC	12 V	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S120-E-01E03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	KSC 8305	75 mW	Europe	500 mA	ITE (Commercial)	CE cULus FCC	12 V	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S090-A-01A03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	NEMA 1-15P	75 mW	North America	650 mA	ITE (Commercial)	CE cULus FCC	9 V	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	5.9 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S050-E-01E03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	KSC 8305	75 mW	Europe	1.2 A	ITE (Commercial)	CE cULus FCC	5 V	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S090-E-01A03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	KSC 8305	75 mW	Europe	650 mA	ITE (Commercial)	CE cULus FCC	9 V	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	5.9 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S050-E-01A03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	KSC 8305	75 mW	Europe	1.2 A	ITE (Commercial)	CE cULus FCC	5 V	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S120-E-01A03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	KSC 8305	75 mW	Europe	500 mA	ITE (Commercial)	CE cULus FCC	12 V	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S150-E-01E03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	KSC 8305	75 mW	Europe	400 mA	ITE (Commercial)	CE cULus FCC	15 VDC	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A
Cincon Electronics Co. LTD TRE06S050-A-11A03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	NEMA 1-15P	75 mW	North America	1.2 A	ITE (Commercial)	CE cULus FCC	5 V	CoC Tier 2 Level VI	Positive Center		6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	0.121 lb	54.88 g
Cincon Electronics Co. LTD TRE06S150-A-01E03 VI	Fixed Blade	25.2 mm	1.42 in	2.05 "	36 mm	0.99 "	52 mm	-20 C	80 C	70.9 in	1.8 m	NEMA 1-15P	75 mW	North America	400 mA	ITE (Commercial)	CE cULus FCC	15 VDC	CoC Tier 2 Level VI	Positive Center	60950-1 62368-1	6 W	90 VAC	264 VAC	Wall Mount (Class II)	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.33

Description

General part information

TRE06S Series

9V 5.9 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
