HL2-HTM-AC240V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes +1

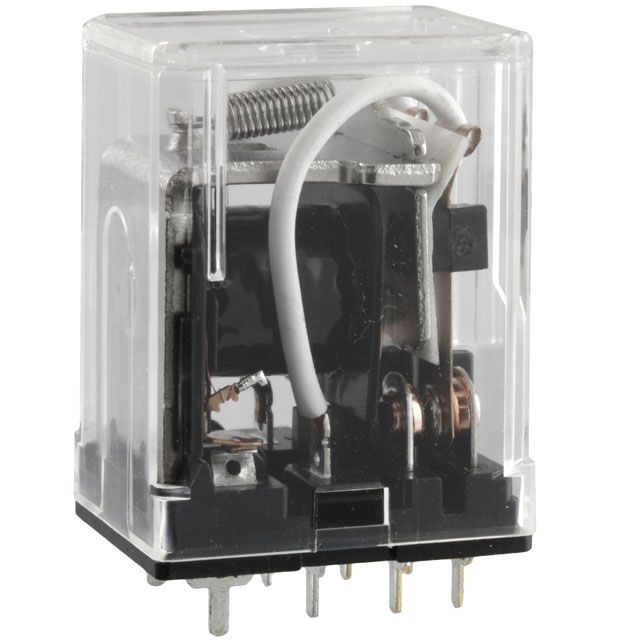

HL2-HTM-AC240V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 10A 240V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HL2-HTM-AC240V-F

Approval Agency	cURus, TUV
Coil Current	5 mA
Coil Resistance	48 kOhms
Coil Type	Non Latching
Coil Voltage	240 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Mounting Type	Chassis Mount
Must Operate Voltage	192 VAC
Must Release Voltage	72 VAC/DC
Operate Time	25 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	125 VAC
Termination Style	Quick Connect - 0.187" (4.7mm)

HL2-HT Series

Part	Coil Voltage	Coil Current	Switching Voltage	Mounting Type	Coil Resistance	Operate Time	Coil Type	Must Operate Voltage	Contact Material	Release Time	Approval Agency	Must Release Voltage	Relay Type	Contact Rating (Current)	Termination Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Electric Works HL2-HTM-DC12V-F	12 VDC	75 mA	125 VAC	Chassis Mount	160 Ohms	25 ms	Non Latching	9.6 VDC	Silver Tin Oxide (AgSnO)	25 ms	cURus TUV	1.2 VDC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-DC6V-F		150 mA	125 VAC	Chassis Mount	40 Ohms	25 ms	Non Latching	4.8 VDC	Silver Tin Oxide (AgSnO)	25 ms	cURus TUV	0.6 VDC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-DC12V	12 VDC	75 mA	125 VAC	Chassis Mount	160 Ohms	10 ms	Non Latching	9.6 VDC	Silver Alloy	5 ms	cURus TUV	1.2 VDC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-AC24V	24 VAC	50 mA	125 VAC	Chassis Mount	480 Ohms	10 ms	Non Latching	19.2 VAC	Silver Alloy	10 ms	cURus TUV	7.2 VAC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-AC240V-F	240 VAC	5 mA	125 VAC	Chassis Mount	48 kOhms	25 ms	Non Latching	192 VAC	Silver Tin Oxide (AgSnO)	25 ms	cURus TUV	72 VAC/DC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-DC48V-F	48 VDC	18.5 mA	125 VAC	Chassis Mount	2.6 kOhms	25 ms	Non Latching	38.4 VDC	Silver Tin Oxide (AgSnO)	25 ms	cURus TUV	4.8 VDC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-AC120V-F	120 VAC	10 mA	125 VAC	Chassis Mount	12 kOhms	25 ms	Non Latching	96 VAC	Silver Tin Oxide (AgSnO)	25 ms	cURus TUV	36 VAC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-DC24V	24 VDC	37 mA	125 VAC	Chassis Mount	650 Ohms	10 ms	Non Latching	19.2 VDC	Silver Alloy	5 ms	cURus TUV	2.4 VDC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-DC24V-TV	24 VDC	37 mA	125 VAC	Chassis Mount	650 Ohms	10 ms	Non Latching	19.2 VDC	Silver Alloy	5 ms	cURus TUV	2.4 VDC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
Panasonic Electric Works HL2-HTM-DC24V-F	24 VDC	37 mA	125 VAC	Chassis Mount	650 Ohms	25 ms	Non Latching	19.2 VDC	Silver Tin Oxide (AgSnO)	25 ms	cURus TUV	2.4 VDC	General Purpose	10 A	Quick Connect - 0.187" (4.7mm)	DPDT (2 Form C)	70 °C	-50 °C
