M1BXK-1040K
Active3M
IDC CABLE - MSR10K/MC10F/X
Deep-Dive with AI
Search across all available documentation for this part.
M1BXK-1040K
Active3M
IDC CABLE - MSR10K/MC10F/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1BXK-1040K | M1BXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Multiple, Twisted Pair (Flat) | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Strain Relief | Strain Relief |
| Length [x] | 1.02 m | 1.02 - 914.4 mm |
| Length [x] | 3.34 ft | 3 - 3.34 ft |
| Number of Positions | 10 | 10 - 60 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1BXK Series
IDC CABLE - MSR50K/MC50G/X
| Part | Pitch - Cable | Pitch - Cable | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Cable Termination | Connector Type | Contact Finish | Number of Positions | Features | Shielding | Number of Rows | Length [x] | Length [x] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 50 | Strain Relief | Unshielded | 2 | 3 ft | 914.4 mm | ||
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 26 | Strain Relief | Unshielded | 2 | 3 ft | 914.4 mm | Multiple, Ribbon | |
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 10 | Strain Relief | Unshielded | 2 | 3 ft | 914.4 mm | ||
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 40 | Strain Relief | Unshielded | 2 | 3.34 ft | 1.02 m | Multiple, Twisted Pair (Flat) | |
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 24 | Strain Relief | Unshielded | 2 | 3 ft | 914.4 mm | ||
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 60 | Strain Relief | Unshielded | 2 | 3.34 ft | 1.02 m | Multiple, Twisted Pair (Flat) | |
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 30 | Strain Relief | Unshielded | 2 | 3 ft | 914.4 mm | Multiple, Ribbon | |
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 14 | Strain Relief | Unshielded | 2 | 3 ft | 914.4 mm | ||
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 40 | Strain Relief | Unshielded | 2 | 3 ft | 914.4 mm | Multiple, Ribbon | |
0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | IDC | Socket to Cable | Gold | 10 | Strain Relief | Unshielded | 2 | 3.34 ft | 1.02 m | Multiple, Twisted Pair (Flat) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.55 | |
| 10 | $ 6.83 | |||
| 25 | $ 6.45 | |||
| 50 | $ 6.29 | |||
| 100 | $ 5.98 | |||
| 250 | $ 5.35 | |||
| 500 | $ 5.03 | |||
| 1000 | $ 4.40 | |||
Description
General part information
M1BXK Series

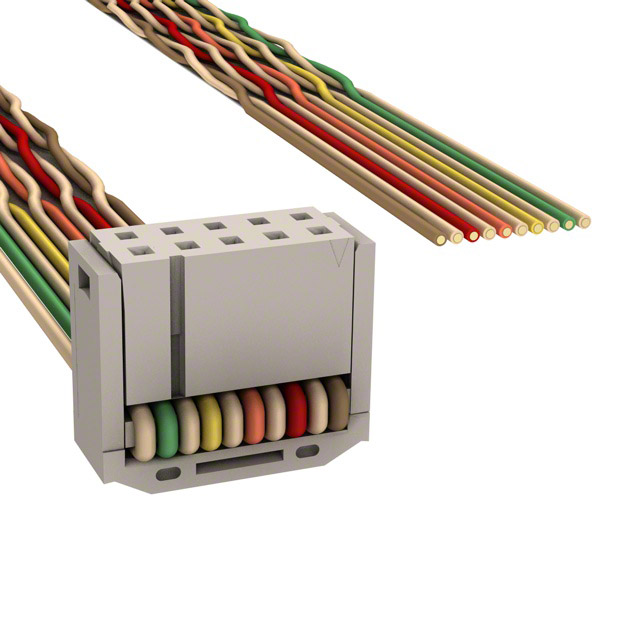

10 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)
Documents
Technical documentation and resources
