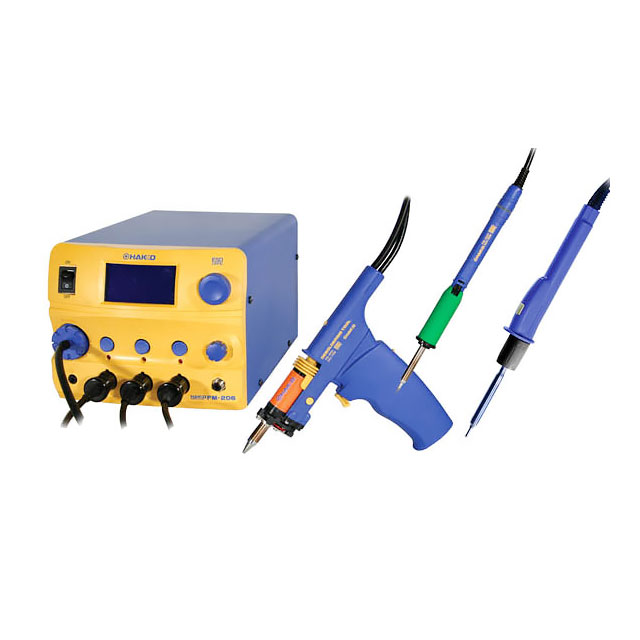

FM206-DSA
ActiveAmerican Hakko Products, Inc.
SOLDER REWORK STA 410W 3 CH 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM206-DSA
ActiveAmerican Hakko Products, Inc.
SOLDER REWORK STA 410W 3 CH 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FM206-DSA | FM206 Series |
|---|---|---|
| Base Unit | FM-206 | FM-206 |
| Control/Display Type | Digital | Digital |
| Features | Security Lock, Internal Air, ESD Safe, Passcode Protected, Configurable Display, Graphic User Interface, Auto Off | Security Lock, Internal Air, ESD Safe, Passcode Protected, Configurable Display, Graphic User Interface, Auto Off |
| Includes | Iron Holder (3), Cord Holder, Nozzle Remover, Heat Resistant Pad (2), Ceramic Filter (10), Cleaning Drill | Iron Holder (3), Cord Holder, Nozzle Remover, Heat Resistant Pad (2), Ceramic Filter (10), Cleaning Drill, Tip Tray |
| Number of Channels [custom] | 3 | 3 |
| Plug Type | NEMA 5-15P | NEMA 5-15P |
| Supplied Iron, Tweezer, Handle | FM-2027-06, FM2029-02, FM-2024-02 | FM2024-02, FM2027-06, None, FM-2027-06, FM2029-02, FM-2024-02 |
| Supplied Tips/Nozzles | Sold Separately | Sold Separately |
| Tip Cleaner | Scouring Pad | Scouring Pad, Not Included |
| Type | Desoldering, Soldering, Rework | Desoldering, Soldering, Rework |
| Voltage - Input | 120 V | 120 V |
| Voltage - Output | 24 V | 24 V |
| Wattage | 410 W | 410 W |
| Workstand | C5034, FH200-01, FH200-05 | FH200-05, FH200-01, None, C5034 |
FM206 Series
SOLDER REWORK STA 410W 3 CH 120V
| Part | Supplied Iron, Tweezer, Handle | Control/Display Type | Base Unit | Tip Cleaner | Type | Includes | Workstand | Wattage | Plug Type | Supplied Tips/Nozzles | Voltage - Output | Voltage - Input | Features | Number of Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Hakko Products, Inc. FM206-DSS | FM2024-02, FM2027-06 | Digital | FM-206 | Scouring Pad | Desoldering, Rework, Soldering | Ceramic Filter (10), Cleaning Drill, Cord Holder, Heat Resistant Pad (2), Iron Holder (3), Nozzle Remover | FH200-01, FH200-05 | 410 W | NEMA 5-15P | Sold Separately | 24 V | 120 V | Auto Off, Configurable Display, ESD Safe, Graphic User Interface, Internal Air, Passcode Protected, Security Lock | 3 |
American Hakko Products, Inc. FM206-55 | None | Digital | FM-206 | Not Included | Rework | Tip Tray | None | 410 W | NEMA 5-15P | Sold Separately | 24 V | 120 V | Auto Off, Configurable Display, ESD Safe, Graphic User Interface, Internal Air, Passcode Protected, Security Lock | 3 |
American Hakko Products, Inc. FM206-DSA | FM-2024-02, FM-2027-06, FM2029-02 | Digital | FM-206 | Scouring Pad | Desoldering, Rework, Soldering | Ceramic Filter (10), Cleaning Drill, Cord Holder, Heat Resistant Pad (2), Iron Holder (3), Nozzle Remover | C5034, FH200-01, FH200-05 | 410 W | NEMA 5-15P | Sold Separately | 24 V | 120 V | Auto Off, Configurable Display, ESD Safe, Graphic User Interface, Internal Air, Passcode Protected, Security Lock | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1958.87 | |
Description
General part information
FM206 Series
SOLDER REWORK STA 410W 3 CH 120V
Documents
Technical documentation and resources
