FM206-DSS

Active

American Hakko Products, Inc.

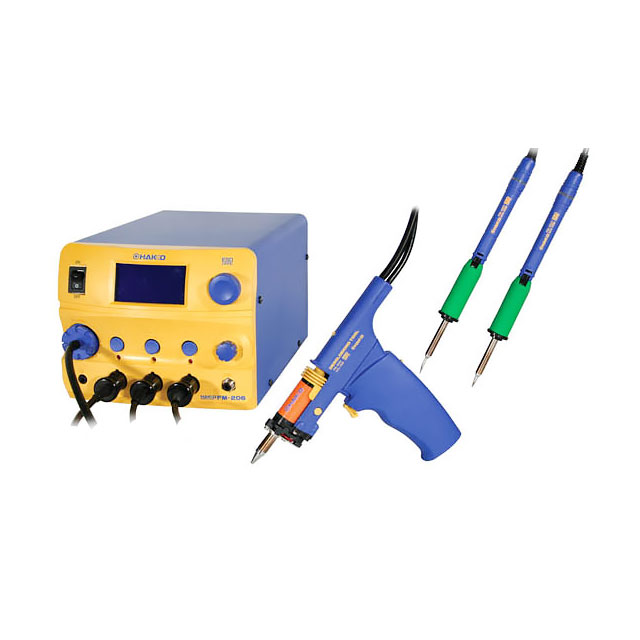

SOLDER REWORK STA 410W 3 CH 120V

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

SOLDER REWORK STA 410W 3 CH 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FM206-DSS	FM206 Series

Base Unit	FM-206	FM-206
Control/Display Type	Digital	Digital
Features	Security Lock, Internal Air, ESD Safe, Passcode Protected, Configurable Display, Graphic User Interface, Auto Off	Security Lock, Internal Air, ESD Safe, Passcode Protected, Configurable Display, Graphic User Interface, Auto Off
Includes	Iron Holder (3), Cord Holder, Nozzle Remover, Heat Resistant Pad (2), Ceramic Filter (10), Cleaning Drill	Iron Holder (3), Cord Holder, Nozzle Remover, Heat Resistant Pad (2), Ceramic Filter (10), Cleaning Drill, Tip Tray
Number of Channels [custom]	3	3
Plug Type	NEMA 5-15P	NEMA 5-15P
Supplied Iron, Tweezer, Handle	FM2024-02, FM2027-06	FM2024-02, FM2027-06, None, FM-2027-06, FM2029-02, FM-2024-02
Supplied Tips/Nozzles	Sold Separately	Sold Separately
Tip Cleaner	Scouring Pad	Scouring Pad, Not Included
Type	Desoldering, Soldering, Rework	Desoldering, Soldering, Rework
Voltage - Input	120 V	120 V
Voltage - Output	24 V	24 V
Wattage	410 W	410 W
Workstand	FH200-05, FH200-01	FH200-05, FH200-01, None, C5034

SOLDER REWORK STA 410W 3 CH 120V

Part	Supplied Iron, Tweezer, Handle	Control/Display Type	Base Unit	Tip Cleaner	Type	Includes	Workstand	Wattage	Plug Type	Supplied Tips/Nozzles	Voltage - Output	Voltage - Input	Features	Number of Channels [custom]
American Hakko Products, Inc. FM206-DSS	FM2024-02, FM2027-06	Digital	FM-206	Scouring Pad	Desoldering, Rework, Soldering	Ceramic Filter (10), Cleaning Drill, Cord Holder, Heat Resistant Pad (2), Iron Holder (3), Nozzle Remover	FH200-01, FH200-05	410 W	NEMA 5-15P	Sold Separately	24 V	120 V	Auto Off, Configurable Display, ESD Safe, Graphic User Interface, Internal Air, Passcode Protected, Security Lock	3
American Hakko Products, Inc. FM206-55	None	Digital	FM-206	Not Included	Rework	Tip Tray	None	410 W	NEMA 5-15P	Sold Separately	24 V	120 V	Auto Off, Configurable Display, ESD Safe, Graphic User Interface, Internal Air, Passcode Protected, Security Lock	3
American Hakko Products, Inc. FM206-DSA	FM-2024-02, FM-2027-06, FM2029-02	Digital	FM-206	Scouring Pad	Desoldering, Rework, Soldering	Ceramic Filter (10), Cleaning Drill, Cord Holder, Heat Resistant Pad (2), Iron Holder (3), Nozzle Remover	C5034, FH200-01, FH200-05	410 W	NEMA 5-15P	Sold Separately	24 V	120 V	Auto Off, Configurable Display, ESD Safe, Graphic User Interface, Internal Air, Passcode Protected, Security Lock	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1705.62

General part information

SOLDER REWORK STA 410W 3 CH 120V

Technical documentation and resources
