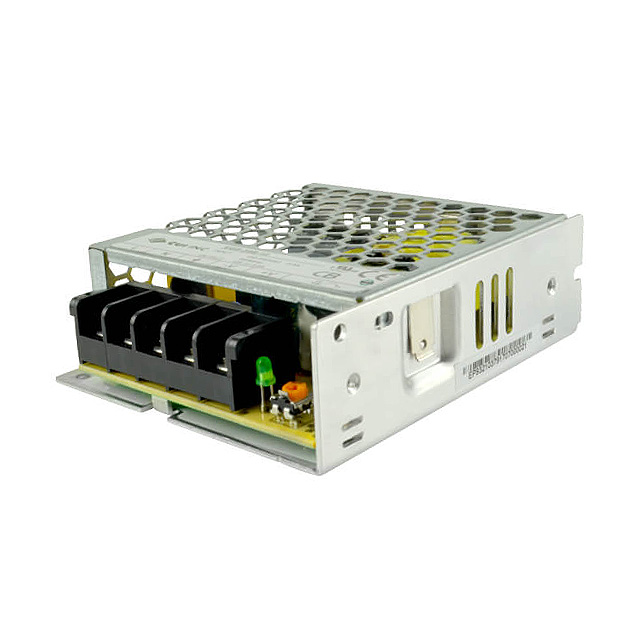

Specification	VGS-35B-24

Applications	ITE (Commercial)
Approval Agency	EN, IEC, SIQ, UL, FCC, TUV, CB Scheme
Current - Output 1	1.5 A
Efficiency	88 %
Features	Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	36 W
Size / Dimension Height	1.18 in
Size / Dimension Length	3.9 in
Size / Dimension Width	3.23 in
Standard Number	60950-1, 55032 Class B, 61000-3-2, 61000-3-3, 55024
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	24 V

VGS-35B Series

Part	Number of Outputs	Current - Output 1	Voltage - Isolation	Applications	Efficiency	Voltage - Output 1	Features	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Operating Temperature (Max)	Operating Temperature (Min)	Standard Number	Type	Mounting Type	Approval Agency	Power (Watts)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width
CUI Inc. VGS-35B-48	1	750 mA	1500 Vrns	ITE (Commercial)	88 %	48 V	Adjustable Output Universal Input	90 V	264 V	70 °C	-20 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Enclosed	Chassis Mount	CB Scheme EN FCC IEC SIQ TUV UL	36 W	1.18 in	3.9 in	3.23 in
CUI Inc. VGS-35B-12	1	3 A	1500 Vrns	ITE (Commercial)	85 %	12 V	Adjustable Output Universal Input	90 V	264 V	70 °C	-20 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Enclosed	Chassis Mount	CB Scheme EN FCC IEC SIQ TUV UL	36 W	1.18 in	3.9 in	3.23 in
CUI Inc. VGS-35B-24	1	1.5 A	1500 Vrns	ITE (Commercial)	88 %	24 V	Adjustable Output Universal Input	90 V	264 V	70 °C	-20 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Enclosed	Chassis Mount	CB Scheme EN FCC IEC SIQ TUV UL	36 W	1.18 in	3.9 in	3.23 in
