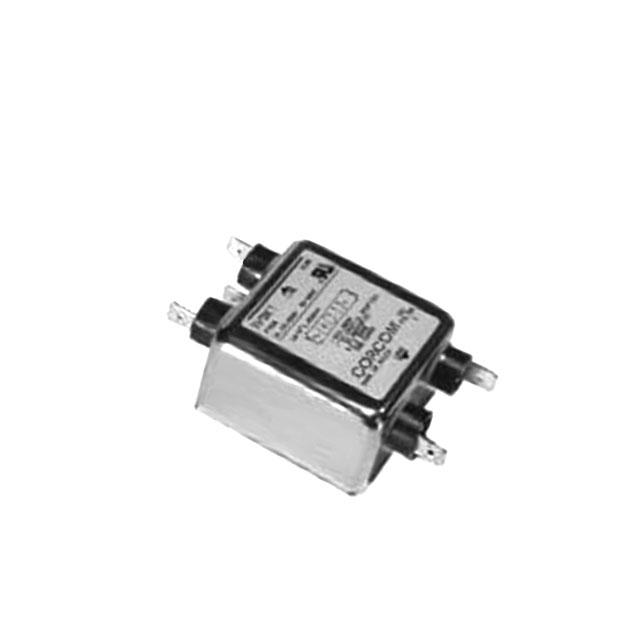

10EDK1

Obsolete

TE Connectivity Corcom Filters

LINE FILTER 250VAC 10A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

10EDK1

Obsolete

TE Connectivity Corcom Filters

LINE FILTER 250VAC 10A CHASSIS

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10EDK1	10E Series

Accomodates a Fuse	-	False
Applications	General Purpose	General Purpose
Approval Agency	VDE, CSA, UR	VDE, CSA, UR, UL
Configuration	Single Stage	Single Stage, Two Stage
Connector Style	-	IEC 320-C14
Connector Type	-	Male Blades, Receptacle
Current	10 A	10 A
Current Rating - Appliance Inlet	-	10 A
Current Rating - Filter	-	10 A
Features	-	Front or Rear Side Mount
Filter Type	Single Phase	Single Phase, Filtered (EMI, RFI) - Commercial
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	495 µH	7.13 - 990 µH
Mounting Type	Chassis Mount	Chassis Mount, Panel Mount, Flange
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Panel Cutout Dimensions	-	Variable Size
Panel Cutout Dimensions	-	20.83 mm
Panel Cutout Dimensions	-	30.48 mm
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Quick Connect	Quick Connect, Wire Leads, Threaded Post (8-32), IEC 320-C14
Voltage - Rated AC	250 V	250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - Appliance Inlet	-	120 VAC

10E Series

LINE FILTER 250VAC 10A CHASS MNT

Part	Configuration	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Filter Type	Termination Style	Applications	Inductance	Mounting Type	Connector Type	Current Rating - Filter	Connector Style	Termination	Termination	Termination	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Panel Cutout Dimensions	Current Rating - Appliance Inlet	Features
TE Connectivity Corcom Filters 10EB1	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose	495 µH	Chassis Mount
TE Connectivity Corcom Filters 10ESK3	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Wire Leads	General Purpose	7.13 mH	Chassis Mount
TE Connectivity Corcom Filters 10EMC6	Two Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Threaded Post (8-32)	General Purpose		Chassis Mount
TE Connectivity Corcom Filters 10ESK7	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	IEC 320-C14, Quick Connect	General Purpose	7.13 mH	Chassis Mount
TE Connectivity Corcom Filters 10EJT1F									Filtered (EMI, RFI) - Commercial				Flange, Panel Mount	Male Blades, Receptacle	10 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect
TE Connectivity Corcom Filters 10EP1	Two Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose		Chassis Mount
TE Connectivity Corcom Filters 10EC1								CSA, UL, VDE	Filtered (EMI, RFI) - Commercial				Flange, Panel Mount	Male Blades, Receptacle	10 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	250 VAC	120 VAC	Variable Size	10 A	Front or Rear Side Mount
TE Connectivity Corcom Filters 10ER7	Two Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	IEC 320-C14, Quick Connect	General Purpose	990 µH	Chassis Mount
TE Connectivity Corcom Filters 10EDK1	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose	495 µH	Chassis Mount
TE Connectivity Corcom Filters 10EH1	Single Stage	250 V	60 Hz	50 Hz	10 A	-10 °C	40 °C	CSA, UR, VDE	Single Phase	Quick Connect	General Purpose	360 µH	Chassis Mount
