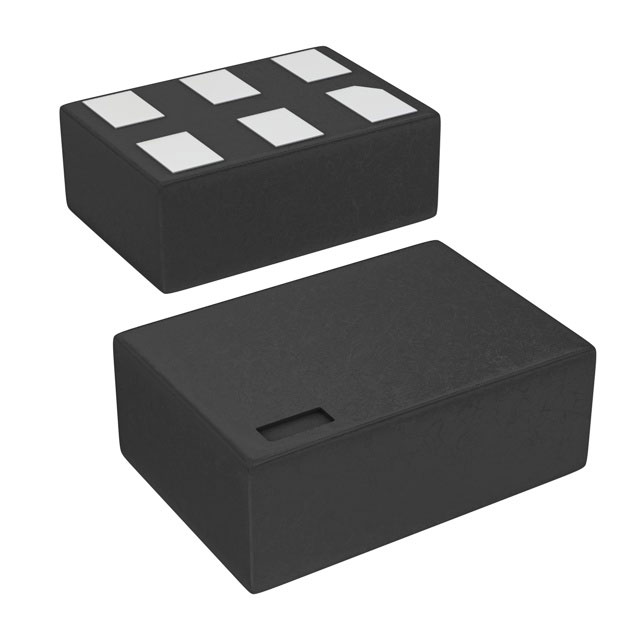

TC7SB3157DL6X,(S2E
ActiveToshiba Semiconductor and Storage
BUS SWITCH SINGLE 1:2 MUX/DEMUX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC7SB3157DL6X,(S2E
ActiveToshiba Semiconductor and Storage
BUS SWITCH SINGLE 1:2 MUX/DEMUX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC7SB3157DL6X,(S2E |
|---|---|
| Circuit [custom] | 2:1 |
| Circuit [custom] | 1 |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-MP6D |
| Supplier Device Package [x] | 1.45 |
| Supplier Device Package [y] | 1 |
| Type | Multiplexer/Demultiplexer |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.65 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.20 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.09 | |||
| 5000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.25 | |||
| 25 | $ 0.20 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.09 | |||
| 5000 | $ 0.08 | |||
| Tape & Reel (TR) | 10000 | $ 0.08 | ||
Description
General part information
TC7SB3157 Series
Multiplexer/Demultiplexer 1 x 2:1 6-MP6D (1.45x1)
