MCP4632T-502E/MF
ActiveMicrochip Technology

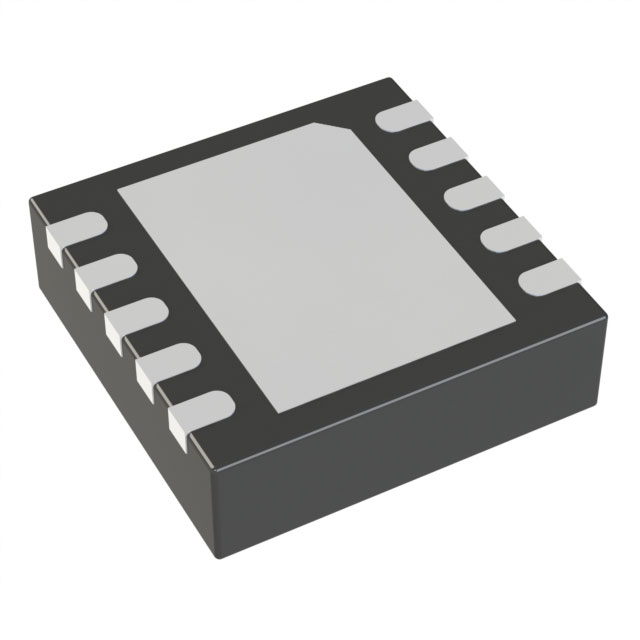

DIGITAL POTENTIOMETER, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8
Deep-Dive with AI
Search across all available documentation for this part.
MCP4632T-502E/MF
ActiveMicrochip Technology
DIGITAL POTENTIOMETER, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MCP4632T-502E/MF | MCP4632 Series |
|---|---|---|
| Configuration | Rheostat | Rheostat |
| Features | Selectable Address | Selectable Address |
| Interface | I2C | I2C |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 2 | 2 |
| Number of Taps | 129 | 129 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 10-VFDFN Exposed Pad | 10-TFSOP, 10-MSOP, 10-VFDFN Exposed Pad |
| Resistance - Wiper (Ohms) (Typ) | 75 Ohms | 75 Ohms |
| Resistance (Ohms) | 5k | 5k, 50k, 10k |
| Resistance (Ohms) | - | 100 kOhms |
| Supplier Device Package | 10-DFN (3x3) | 10-MSOP, 10-DFN (3x3) |
| Taper | Linear | Linear |
| Temperature Coefficient (Typ) | 150 ppm/°C | 150 ppm/°C |
| Tolerance [Max] | 20 % | 20 % |
| Tolerance [Min] | -20 % | -20 % |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | N/A | 3300 | $ 1.05 | |
| 6600 | $ 1.03 | |||
| 13200 | $ 1.00 | |||
| 19800 | $ 0.98 | |||
| 26400 | $ 0.96 | |||
| DigiKey | N/A | 1 | $ 1.20 | |
| 3300 | $ 0.89 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.20 | |
| Digi-Reel® | 1 | $ 1.20 | ||
| Tape & Reel (TR) | 3300 | $ 0.89 | ||
| Future Electronics | N/A | 3300 | $ 0.93 | |
| Master Electronics | N/A | 825 | $ 1.69 | |
| 1650 | $ 1.04 | |||
| 2475 | $ 0.82 | |||
| 3300 | $ 0.81 | |||
| Microchip Direct | T/R | 1 | $ 1.20 | |
| 25 | $ 1.00 | |||
| 100 | $ 0.89 | |||
| 1000 | $ 0.87 | |||
| 5000 | $ 0.85 | |||
| Microchip Technology Inc | N/A | 1 | $ 1.20 | |
| 25 | $ 1.00 | |||
| 100 | $ 0.89 | |||
| 1000 | $ 0.87 | |||
| 5000 | $ 0.85 | |||
| Mouser Electronics | N/A | 1 | $ 0.98 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.92 | |||
| 100 | $ 0.89 | |||
| 3300 | $ 0.89 | |||
| NAC | N/A | 1 | $ 1.18 | |
| 100 | $ 1.07 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.96 | |||
| Newark | N/A | 100 | $ 0.92 | |
| Onlinecomponents.com | N/A | 825 | $ 1.69 | |
| 1650 | $ 1.04 | |||
| 2475 | $ 0.82 | |||
| 3300 | $ 0.81 | |||
| RS | N/A | 3300 | $ 1.66 | |
| 33000 | $ 1.57 | |||
| 165000 | $ 1.49 | |||
| 330000 | $ 1.41 | |||
MCP4632 Series
7-Bit Dual Digital POT with I2C™
| Part | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance [Max] | Tolerance [Min] | Features | Number of Taps | Package / Case | Memory Type | Resistance (Ohms) | Number of Circuits | Taper | Temperature Coefficient (Typ) | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Configuration | Resistance - Wiper (Ohms) (Typ) | Interface | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MCP4632T-502E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 5k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632-502E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 5k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632T-503E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 50k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632T-103E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 10k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632T-103E/MF | 10-DFN (3x3) | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-VFDFN Exposed Pad | Volatile | 10k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632T-502E/MF | 10-DFN (3x3) | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-VFDFN Exposed Pad | Volatile | 5k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632T-104E/MF | 10-DFN (3x3) | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-VFDFN Exposed Pad | Volatile | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | 100 kOhms | |
Microchip Technology MCP4632T-104E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | 100 kOhms | |
Microchip Technology MCP4632T-503E/MF | 10-DFN (3x3) | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-VFDFN Exposed Pad | Volatile | 50k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632-104E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | 100 kOhms | |
Microchip Technology MCP4632-503E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 50k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C | |
Microchip Technology MCP4632-103E/UN | 10-MSOP | 125 °C | -40 °C | 20 % | -20 % | Selectable Address | 129 | 10-MSOP, 10-TFSOP | Volatile | 10k | 2 | Linear | 150 ppm/°C | Surface Mount | 1.8 V | 5.5 V | Rheostat | 75 Ohms | I2C |
Description
General part information
MCP4632 Series
The MCP463X devices are dual channel, volatile, 7-bit (129 wiper steps) digital potentiometers with an I2C compatible interface. The MCP463X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
