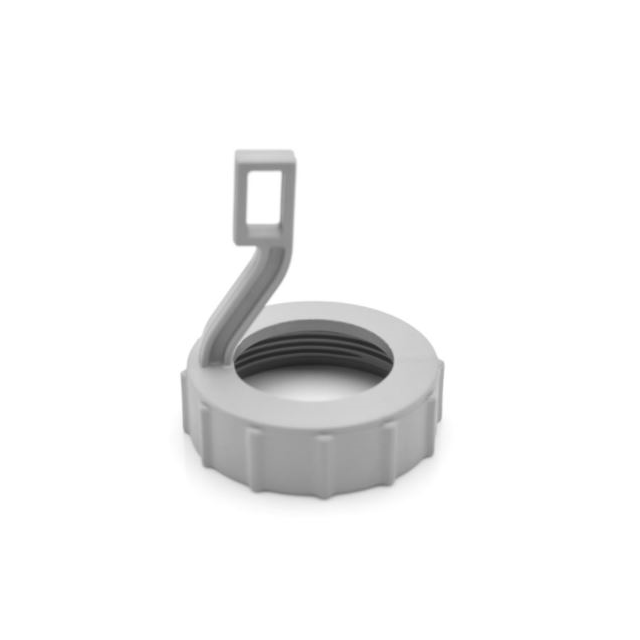

Specification	AHD18-009

Cable Exit Angle	180 °
Color	Gray
Diameter - Outside	1.634 in
Features	Tie Wrap Holder
For Use With/Related Products	AHD™ Series Connector, 9 pos
Includes	Backshell
Includes Total Count	1 pcs
Material	Thermoplastic
Shielding	Unshielded
Thread Pitch (TPI)	18 TPI
Thread Size (Class)	UNEF
Thread Size (Nominal)	1.375 in
Type	Backshell

AHD18 Series

Part	For Use With/Related Products	Includes Total Count	Includes	Color	Shielding	Diameter - Outside	Material	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Features	Type	Cable Exit Angle
McGill Microwave Systems AHD18-009	9 pos AHD™ Series Connector	1 pcs	Backshell	Gray	Unshielded	1.634 in	Thermoplastic	18 TPI	UNEF	1.375 in	Tie Wrap Holder	Backshell	180 °
McGill Microwave Systems AHD18-006	6 pos AHD™ Series Connector	1 pcs	Backshell	Gray	Unshielded	0.85 in	Thermoplastic	18 TPI	UNEF	1.3125 in	Tie Wrap Holder	Backshell	180 °
