TSZU52C3V6

Active

Taiwan Semiconductor Corporation

603, 150MW, 5%, SMALL SIGNAL ZEN

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

603, 150MW, 5%, SMALL SIGNAL ZEN

Technical Specifications

Parameters and characteristics for this part

Part	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Power - Max [Max]	Voltage - Forward (Vf) (Max) @ If	Tolerance	Voltage - Zener (Nom) (Vz)	Mounting Type	Impedance (Max) (Zzt) [Max]	Impedance (Max) (Zzt)
Taiwan Semiconductor Corporation TSZU52C2V2	100 µA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	2.2 V	Surface Mount
Taiwan Semiconductor Corporation TSZU52C15 RGG	100 nA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	15 V	Surface Mount	30 Ohms
Taiwan Semiconductor Corporation TSZU52C16 RGG	100 nA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	16 V	Surface Mount	40 Ohms
Taiwan Semiconductor Corporation TSZU52C3V6	15 µA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	3.6 V	Surface Mount	95 Ohms
Taiwan Semiconductor Corporation TSZU52C2V2 RGG	100 µA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	2.2 V	Surface Mount
Taiwan Semiconductor Corporation TSZU52C13	100 nA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	13 V	Surface Mount	25 Ohms
Taiwan Semiconductor Corporation TSZU52C3V0 RGG	50 ÁA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	3 V	Surface Mount	95 Ohms
Taiwan Semiconductor Corporation TSZU52C12 RGG	100 nA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	12 V	Surface Mount	20 Ohms
Taiwan Semiconductor Corporation TSZU52C6V2	100 nA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	6.2 V	Surface Mount		10 Ohms
Taiwan Semiconductor Corporation TSZU52C3V6 RGG	15 µA	125 ¯C	-55 °C	0603 (1608 Metric)	150 mW	900 mV	5 %	3.6 V	Surface Mount	95 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

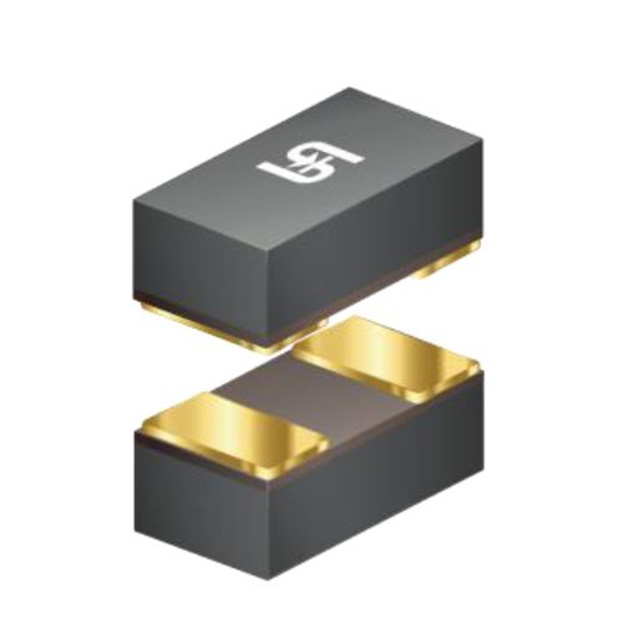

Zener Diode 3.6 V 150 mW ±5% Surface Mount 0603
