Q-020460001009i

Active

Amphenol Custom Cable

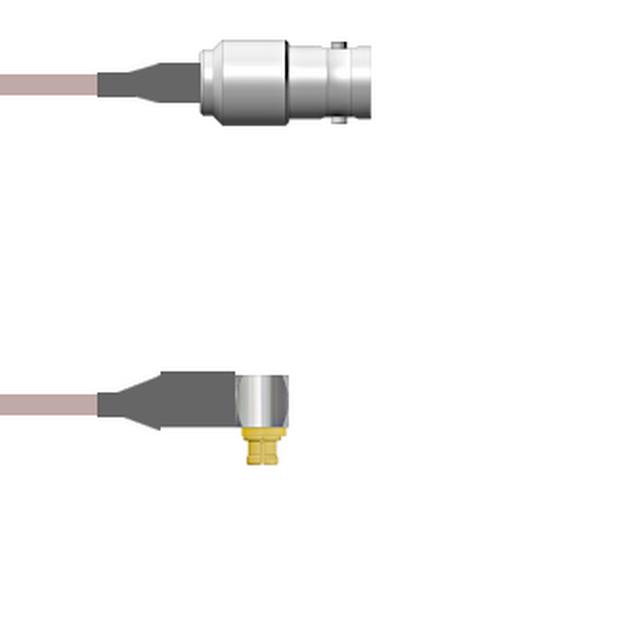

CBL ASSY BNC-SMPM JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-020460001009i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMPM JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-020460001009i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMPM Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to SMPM

Q-020460 Series

Part	Features	Frequency - Max [Max]	Style	Overall Impedance	2nd Contact Gender	1st Connector Mounting Type	Cable Type	Length [x]	Length [x]	Color	2nd Connector Mounting Type	1st Connector	2nd Connector	1st Contact Gender	Length	Length	Length
Amphenol Custom Cable Q-020460001.25M	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178	9.843 "	250 mm	Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female
Amphenol Custom Cable Q-020460001084i	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-0204600012.5M	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-020460001001M	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-0204600010.5M	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	19.69 "	50 cm
Amphenol Custom Cable Q-020460001072i	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	72 in	1.8 m	6 ft
Amphenol Custom Cable Q-020460001009i	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	9 "	228.6 mm
Amphenol Custom Cable Q-020460001036i	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	36 in	91.44 cm
Amphenol Custom Cable Q-020460001003i	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	3 in	76.2 mm
Amphenol Custom Cable Q-020460001.75M	Shielded	4 GHz	BNC to SMPM	50 Ohms	Male	Free Hanging (In-Line)	RG-178			Copper	Free Hanging (In-Line)	BNC Jack	SMPM Plug Right Angle	Female	29.53 "	750 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 105.12
		25	$ 103.07
		50	$ 101.02
		100	$ 98.97
		250	$ 96.92

Description

General part information

Q-020460 Series

Cable Assembly Coaxial BNC to SMPM RG-178 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
