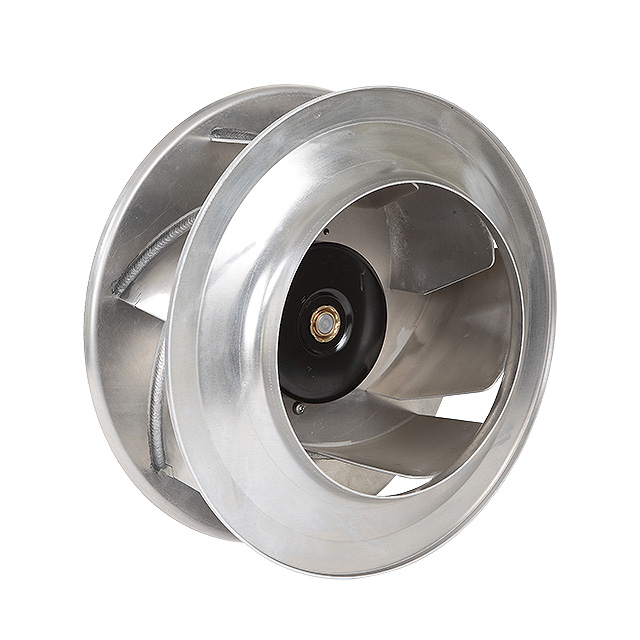

GTB040PUD26R

Active

Delta Electronics

FAN BLWR CENT 404X257MM 400VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

GTB040PUD26R

Active

Delta Electronics

FAN BLWR CENT 404X257MM 400VAC

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GTB040PUD26R

Air Flow	98.9 m³/min
Air Flow	3532 CFM
Approval Agency	cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.75 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Aluminum
Material - Frame	Aluminum
Noise	79 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	640 W
RPM	1850 RPM
Size / Dimension [diameter]	404 mm
Static Pressure	3.031 in H2O
Static Pressure	755 Pa
Termination	Terminal Block
Voltage - Rated	400 VAC
Voltage Range [Max]	480 VAC
Voltage Range [Min]	380 VAC
Weight	23 lbs
Weight	10.4 kg
Width [y]	256.6 mm

GTB040 Series

Part	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [diameter]	Width [y]	Bearing Type	Material - Blade	Features	Weight	Weight	Current Rating (Amps)	Fan Type	Static Pressure	Static Pressure	Material - Frame	Ingress Protection	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Noise	Termination	Size / Dimension
Delta Electronics GTB040FUC20R	1600 RPM	-25 °C	60 °C	cUL TUV UL	277 VAC	200 VAC	404 mm	203 mm	Ball	Aluminum	PWM Control	6.4 kg	14 lb	3.1 A	Motorized Impellers	562.9 Pa	2.26 in H2O	Aluminum	IP54 - Dust Protected Water Resistant	52 m³/min	1857 CFM	244 W	230 VAC	74 dB(A)
Delta Electronics GTB040FUC23R N1	1500 RPM	-25 °C	60 °C	cUL TUV UL	277 VAC	200 VAC	404 mm	227.3 mm	Ball	Aluminum	PWM Control	7.3 kg	16 lbs	3.1 A	Motorized Impellers			Aluminum	IP54 - Dust Protected Water Resistant	57.9 m³/min	2068 CFM	250 W	230 VAC	76 dB(A)
Delta Electronics GTB040PUD26R	1850 RPM	-25 °C	60 °C	cUL TUV UL	480 VAC	380 VAC	404 mm	256.6 mm	Ball	Aluminum	PWM Control Speed Sensor (Tach)	10.4 kg	23 lbs	1.75 A	Motorized Impellers	755 Pa	3.031 in H2O	Aluminum	IP54 - Dust Protected Water Resistant	98.9 m³/min	3532 CFM	640 W	400 VAC	79 dB(A)	Terminal Block
Delta Electronics GTB040FUC20R N1	1600 RPM	-25 °C	60 °C	cUL TUV UL	277 VAC	200 VAC	404 mm	203 mm	Ball	Aluminum	PWM Control	7.3 kg	16 lbs	3.1 A	Motorized Impellers	562.9 Pa	2.26 in H2O	Aluminum	IP54 - Dust Protected Water Resistant	52 m³/min	1857 CFM	244 W	230 VAC	74 dB(A)
Delta Electronics GTB040FUC23R	1500 RPM	-25 °C	60 °C	cUL TUV UL	277 VAC	200 VAC	404 mm	227.3 mm	Ball	Aluminum	Electronic Commutation (EC)	6.4 kg	14 lb	3.1 A	Motorized Impellers			Aluminum	IP54 - Dust Protected Water Resistant	57.9 m³/min	2068 CFM	250 W	230 VAC	76 dB(A)
Delta Electronics GTB040PUD27R	2140 RPM	-25 °C	60 °C	cUL TUV UL	480 VAC	380 VAC	404 mm	270 mm	Ball	Aluminum	PWM Control Speed Sensor (Tach)	10.4 kg	23 lbs	1.75 A	Motorized Impellers			Aluminum	IP54 - Dust Protected Water Resistant	86.86 m³/min	3102 CFM		400 VAC	81 dB(A)	Terminal Block
Delta Electronics GTB040PUD27R N1	2140 RPM	-25 °C	60 °C	cUL TUV UL	480 VAC	380 VAC	405 mm	270.7 mm	Ball	Aluminum	PWM Control Speed Sensor (Tach)	11.3 kg	25 lbs	1.75 A	Motorized Impellers			Aluminum	IP54 - Dust Protected Water Resistant	86.86 m³/min	3102 CFM		400 VAC	81 dB(A)	Terminal Block	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 769.62

Description

General part information

GTB040 Series

Fan Motorized Impellers 400VAC Round - 404mm Dia Ball 3532.0 CFM (98.90m³/min) Terminal Block
