787190-1

Active

TE Connectivity AMP Connectors

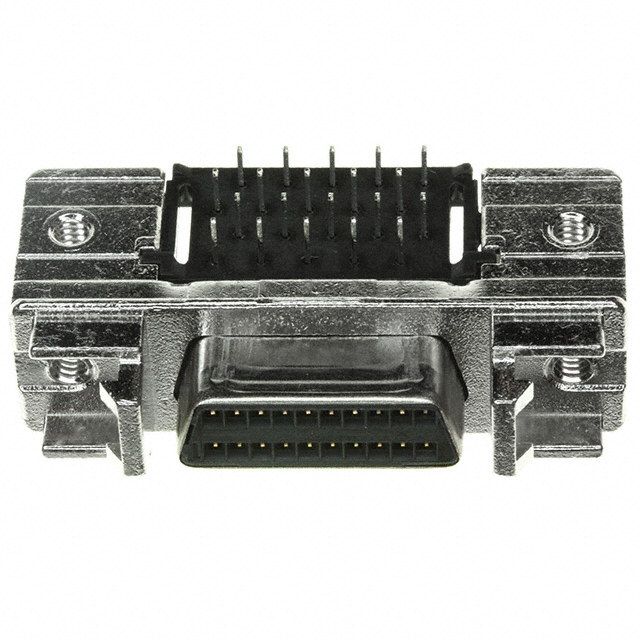

CONN D-TYPE RCPT 20POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 20POS R/A SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	787190-1	787190 Series

Backset Spacing	3.71 mm	3.71 mm
Backset Spacing	0.146 in	0.146 in
Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Thermoplastic	Thermoplastic
Features	Shielded	Shielded
Flange Feature	Latchblocks, Housing/Shell (2-56), Rails	Latchblocks, Housing/Shell (2-56), Rails
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	20	20 - 26
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 26POS R/A SLDR

Part	Features	Backset Spacing	Backset Spacing	Dielectric Material	Number of Rows	Contact Material	Termination	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Color	Material Flammability Rating	Mounting Type	Voltage Rating	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Connector Style	Shell Material, Finish	Contact Type	Contact Finish
TE Connectivity AMP Connectors 787190-2	Shielded	3.71 mm	0.146 in	Thermoplastic	2	Phosphor Bronze	Solder	Housing/Shell (2-56), Latchblocks, Rails	105 ░C	-55 °C	Receptacle, Female Sockets	26	Black	UL94 V-0	Board Edge, Right Angle, Through Hole	30 VDC	0.05	0.1	D-Type	Nickel Plated, Steel	Signal	Gold
TE Connectivity AMP Connectors 787190-1	Shielded	3.71 mm	0.146 in	Thermoplastic	2	Phosphor Bronze	Solder	Housing/Shell (2-56), Latchblocks, Rails	105 ░C	-55 °C	Receptacle, Female Sockets	20	Black	UL94 V-0	Board Edge, Right Angle, Through Hole	30 VDC	0.05	0.1	D-Type	Nickel Plated, Steel	Signal	Gold
