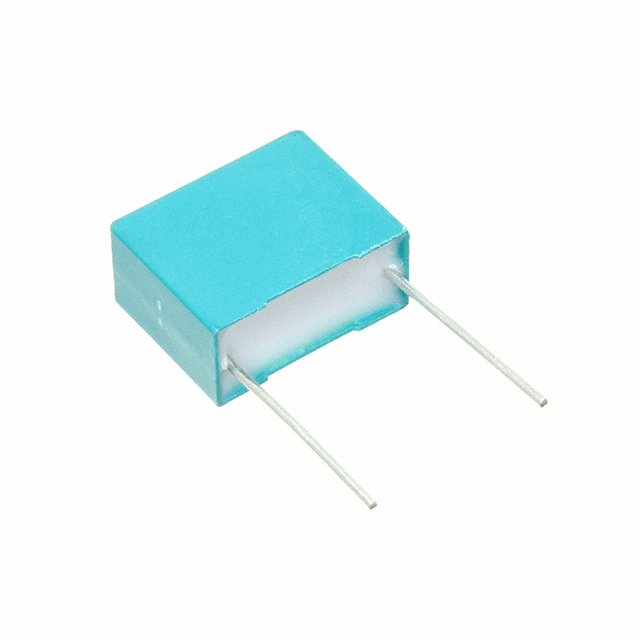

F861BP474K310A

Active

KEMET

CAP FILM 0.47UF 10% 310VAC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.47UF 10% 310VAC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	F861BP474K310A

Applications	EMI, RFI Suppression
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	0.571 in
Height - Seated (Max) [Max] [z]	14.5 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V

Part	Package / Case	Dielectric Material	Termination	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Ratings	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - AC
KEMET F861BP474K310A	Radial	Metallized Polypropylene (PP)	PC Pins	EMI RFI Suppression	0.709 in	8.5 mm	18 mm	0.335 in	0.571 in	14.5 mm	Through Hole	-40 °C	110 °C	0.47 µF	X2	10 %	15 mm	0.591 in	310 V
