HEEE-040-M
ActiveTE Connectivity AMP Connectors

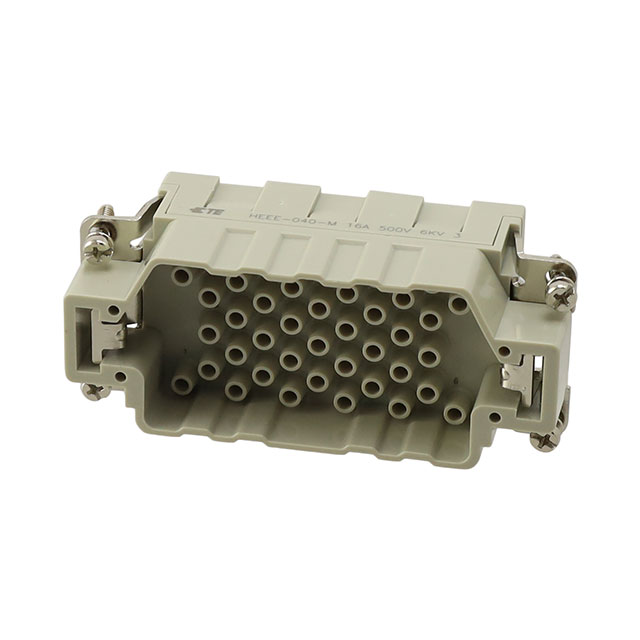

INSERT MALE 40P+1GND HEEE-040-M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEEE-040-M
ActiveTE Connectivity AMP Connectors
INSERT MALE 40P+1GND HEEE-040-M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HEEE-040-M |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CEM, DEM |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 |
| Number of Positions | 40+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.64 | |
| 10 | $ 5.78 | |||
| 25 | $ 5.63 | |||
| 50 | $ 5.48 | |||
| 100 | $ 5.36 | |||
T2050402101 Series
INSERT MALE 40P+1GND HEEE-040-M
| Part | Material Flammability Rating | Housing Material | Current Rating (Amps) | Size | Number of Positions | Gender | Voltage Rating | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEEE-040-M | EN45545 | Polycarbonate (PC) | 16 A | H16B | 40+Ground | Male | 500 V | CEM, DEM | 125 °C | -40 °C | Insert without Contacts | Crimp |
Description
General part information
T2050402101 Series
Male Insert without Contacts 40+Ground Position Crimp
