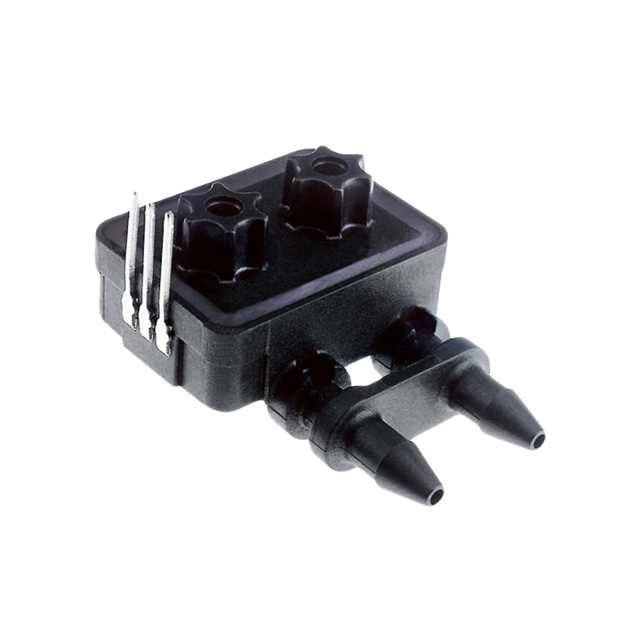

P993-5B
ActiveSensata Technologies
SENSOR 0.18PSID 4V
Deep-Dive with AI
Search across all available documentation for this part.
P993-5B
ActiveSensata Technologies
SENSOR 0.18PSID 4V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P993-5B |
|---|---|
| Applications | Board Mount |
| Features | Temperature Compensated |
| Mounting Type | Through Hole |
| Operating Pressure [Max] | 1.25 kPa |
| Operating Pressure [Min] | -1.25 kPa |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output [Max] | 4 V |
| Output [Min] | 0.25 V |
| Output Type | Analog Voltage |
| Package / Case | 3-SIP Module |
| Port Style | Barbed |
| Pressure Type | Differential |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.40 | |
| 10 | $ 87.52 | |||
| 50 | $ 64.79 | |||
Description
General part information
P993-5 Series
Pressure Sensor -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) Differential 0.25 V ~ 4 V 3-SIP Module
Documents
Technical documentation and resources
No documents available
