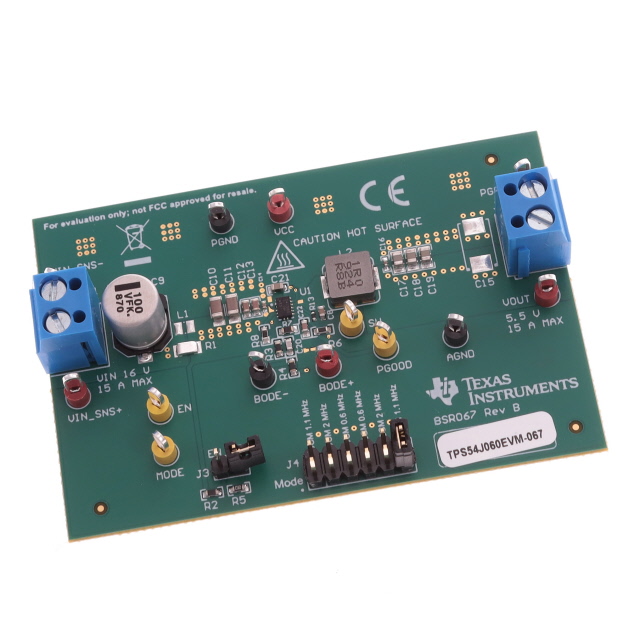

TPS54J060EVM-067
ActiveTexas Instruments
EVAL BOARD FOR TPS54J060
TPS54J060EVM-067
ActiveTexas Instruments
EVAL BOARD FOR TPS54J060
Description
General part information
TPS54J060EVM-067
TPS54J060 - DC/DC Converter 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS54J060EVM-067 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 6 A |
| Frequency - Switching | 1.1 MHz |
| Main Purpose | DC/DC Converter |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS54J060 |
| Voltage - Input (Maximum) | 16 V |
| Voltage - Input (Minimum) | 4 V |
| Voltage - Output | 1.8 V |
