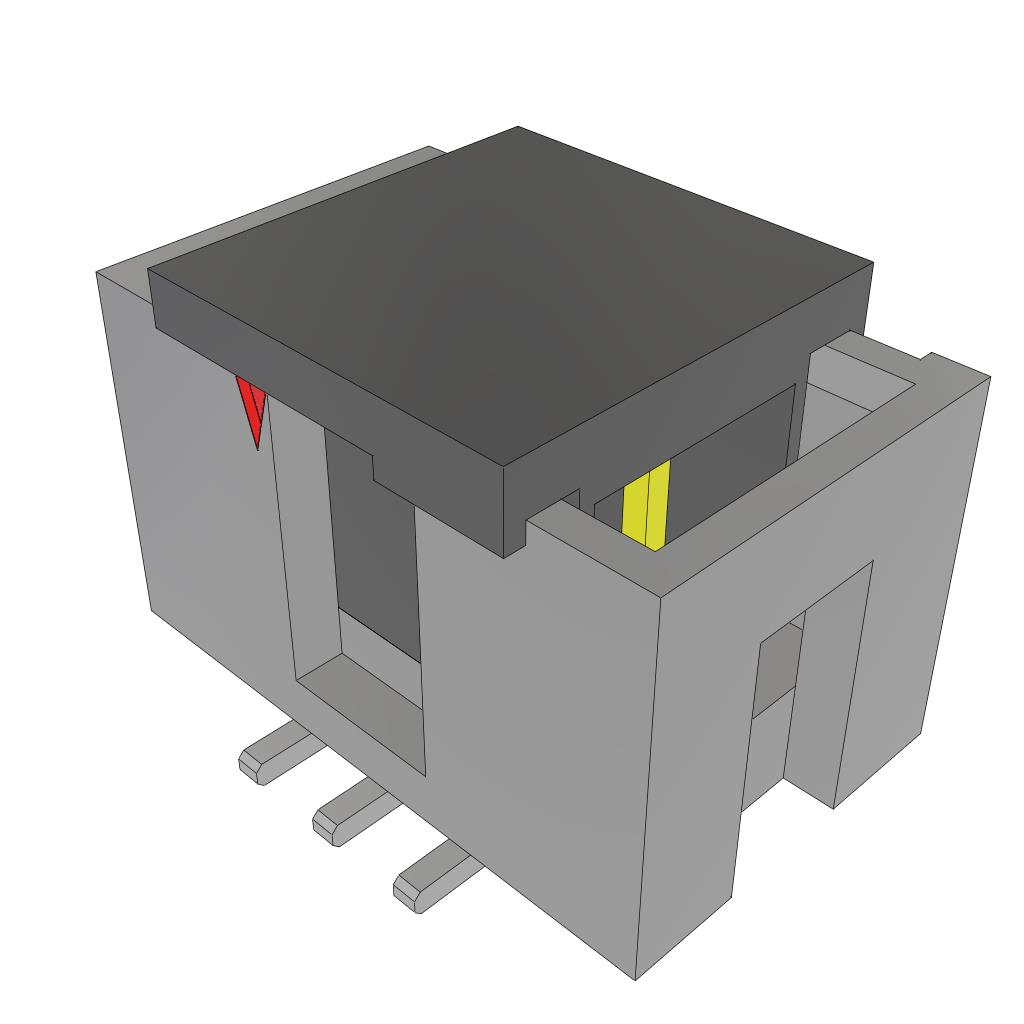

HTST-103-01-L-DV-P-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" HIGH-TEMP SHROUDED TERMINAL STRIP, CABLE MATE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .100" High-Temp Shrouded Terminal Strip, Cable Mate +2

HTST-103-01-L-DV-P-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" HIGH-TEMP SHROUDED TERMINAL STRIP, CABLE MATE

Deep-Dive with AI

DocumentsDatasheet .100" High-Temp Shrouded Terminal Strip, Cable Mate +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTST-103-01-L-DV-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

HTST-103 Series

Part	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Shape	Termination	Contact Material	Contact Type	Features	Mounting Type	Fastening Type	Number of Positions Loaded	Number of Rows	Connector Type	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height
Samtec Inc. HTST-103-01-T-DV-P-TR	UL94 V-0	105 ░C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot Pick and Place	Surface Mount	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)
Samtec Inc. HTST-103-01-S-D	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot	Through Hole	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold	2.92 mm	0.115 in	0.48 in	12.19 mm	30 Áin	0.76 Ám
Samtec Inc. HTST-103-01-L-D	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot	Through Hole	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold	2.92 mm	0.115 in	0.48 in	12.19 mm	10 çin	0.25 çm
Samtec Inc. HTST-103-01-L-DV-P-TR	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot Pick and Place	Surface Mount	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold					10 çin	0.25 çm
Samtec Inc. HTST-103-05-LM-D-RA	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot	Through Hole Right Angle	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm			6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold	5.84 mm	0.23 in			10 çin	0.25 çm	0.365 in	9.27 mm
Samtec Inc. HTST-103-01-F-DV-P-TR	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot Pick and Place	Surface Mount	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold					3 µin	0.076 µm
Samtec Inc. HTST-103-01-L-DV-P	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot Pick and Place	Surface Mount	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold					10 çin	0.25 çm
Samtec Inc. HTST-103-01-S-DV	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot	Surface Mount	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold					30 Áin	0.76 Ám
Samtec Inc. HTST-103-01-L-DV-A	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Board Guide Keying Slot	Surface Mount	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold					10 çin	0.25 çm
Samtec Inc. HTST-103-01-L-DV	UL94 V-0	125 °C	-55 °C	Shrouded - 4 Wall	Natural	2.54 mm	0.1 in	Board to Cable/Wire	Square	Solder	Phosphor Bronze	Male Pin	Keying Slot	Surface Mount	Push-Pull	All	2	Header	Tin	6	0.1 in	2.54 mm	0.35 in	8.89 mm	6.35 mm	0.25 in	Liquid Crystal Polymer (LCP)	Gold					10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	175	$ 2.83
Sager	N/A	1	$ 3.74
		50	$ 3.05
		100	$ 2.59
		500	$ 2.30
		1000	$ 1.82
		2000	$ 1.67
		5000	$ 1.35
		10000	$ 1.03

Description

General part information

HTST-103 Series

Connector Header Surface Mount 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

.100" High-Temp Shrouded Terminal Strip, Cable Mate

HTST Datasheet

Datasheet

Document
