Technical Specifications
Parameters and characteristics for this part
| Specification | EVSPIN32G4-DUAL |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Motor Controller/Driver |
| Primary Attributes | Motors (BLDC) |
| Secondary Attributes | On-Board LEDs, Test Points |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | STDRIVE101, STSPIN32G4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVSPIN32G4-DUAL Series

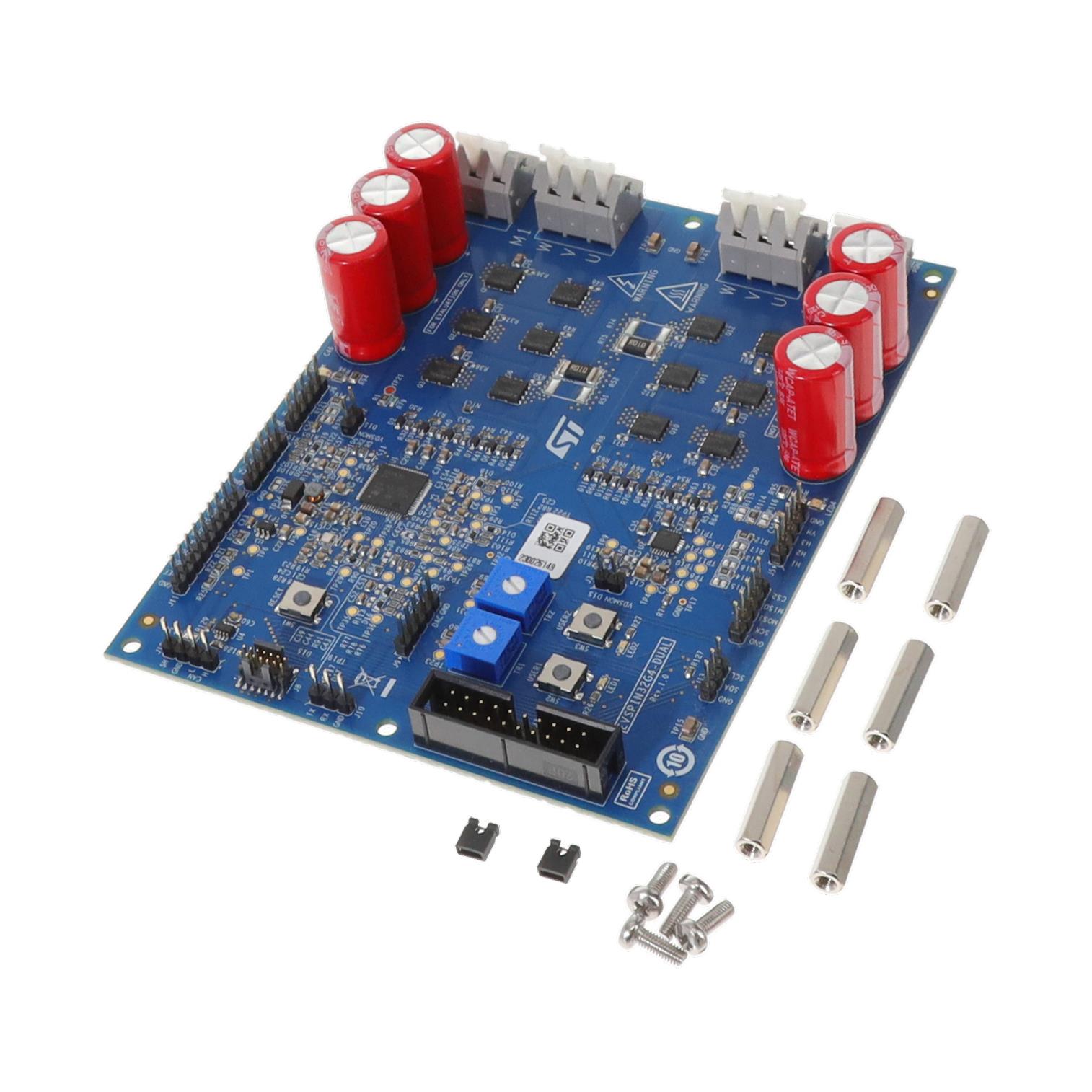

The EVSPIN32G4-DUAL is a demonstration board based on the STSPIN32G4 and STDRIVE101 for applications using two three-phase brushless motors.
The STSPIN32G4 is a system in package integrating in a 9x9 mm VFQFPN package, a triple high-performance half-bridge gate driver with a rich set of programmable features and one mixed signal STM32G431 microcontroller. The STDRIVE101 is a triple half-bridge gate driver in a compact 4x4 VFQPN package featuring 600 mA current capability and embedded protections.
The two power stages based on the STL110N10F7 power MOSFETs can simultaneously operate up to 10 Arm output current and 74 V supply, providing dedicated monitoring for temperature and bus voltage, drain-source voltage sensing of power MOSFETs and overcurrent protection.
