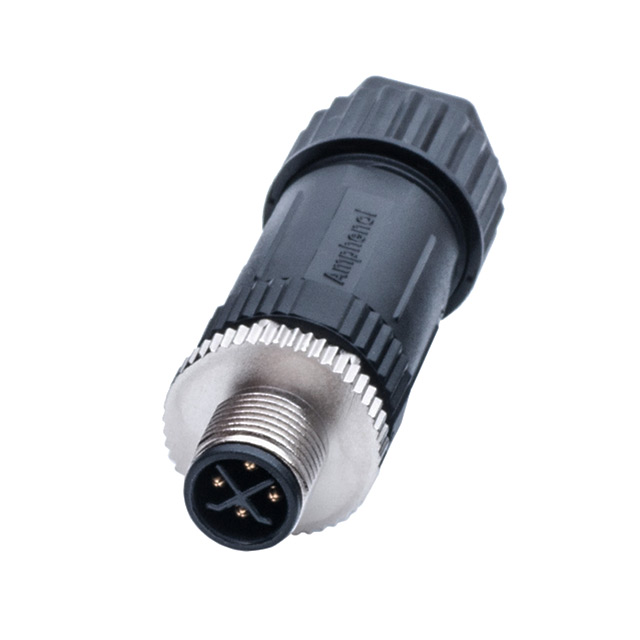

M12S-04BMMB-SL7002

Active

Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, MALE, 4 POSITIONS, SCREW PIN, STRAIGHT CABLE MOUNT

Search across all available documentation for this part.

Active

Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, MALE, 4 POSITIONS, SCREW PIN, STRAIGHT CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	M12S-04BMMB-SL7002

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	12 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	630 VAC/DC

Part	Material Flammability Rating	Shell Size - Insert	Color	Number of Positions	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Current Rating (Amps)	Backshell Material, Plating	Mounting Type	Orientation	Termination	Ingress Protection	Shielding	Shell Finish	Voltage Rating	Primary Material	Contact Material	Contact Finish - Mating	Insert Material
Amphenol LTW M12S-04BMMB-SL7002	UL94 V-0	M12-4	Black Silver	4	Zinc Alloy	-40 °C	105 ░C	Backshell	Male Pins Plug	12 A	Nylon Polyamide (PA)	Free Hanging (In-Line)	S	Screw	IP67 - Dust Tight Waterproof	Unshielded	Nickel	630 VAC/DC	Metal	Copper Alloy	Gold	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Screw
