SLSD-71N200

Active

Advanced Photonix

SENSOR PHOTODIODE 940NM BOX WIRE

Search across all available documentation for this part.

Active

Advanced Photonix

SENSOR PHOTODIODE 940NM BOX WIRE

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 940NM BOX WIRE

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Dark (Typ)	Responsivity @ nm	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength	Viewing Angle
Advanced Photonix SLSD-71N200	Free Hanging	20 V	3.3 µA	0.55 A/W	1100 nm	400 nm	Box with Wire Leads	-40 °C	105 ░C	940 nm	120 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 5.07

General part information

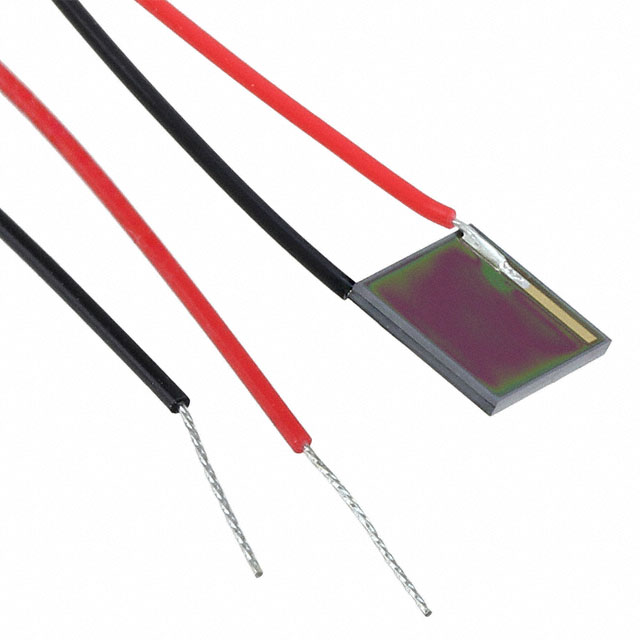

Photodiode 940nm 120° Box with Wire Leads

Technical documentation and resources
