MA7CAE1700-S2

Active

Amphenol Sine Systems Corp

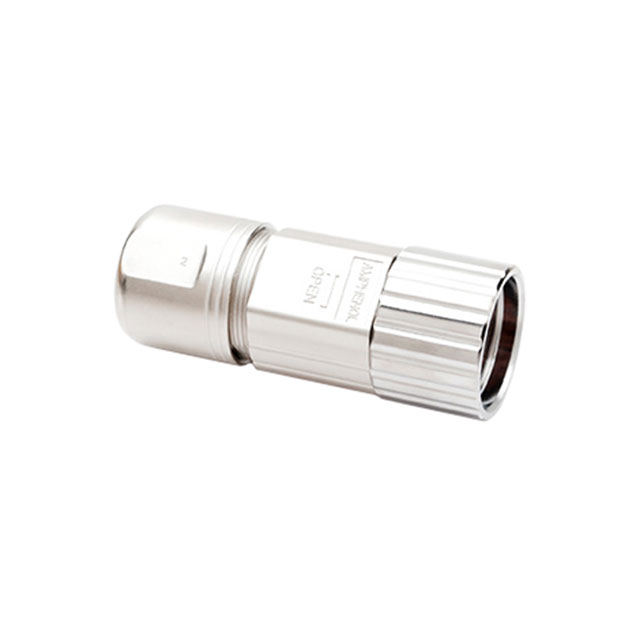

CONN PLUG HSNG F/M 17POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MotionGrade DIN M23/M40 +1

MA7CAE1700-S2

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG F/M 17POS INLINE

Deep-Dive with AI

DocumentsDatasheet MotionGrade DIN M23/M40 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA7CAE1700-S2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Female Sockets or Male Pins

MA7CAE Series

Part	Mounting Type	Shell Size - Insert	Color	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Connector Type	Ingress Protection	Orientation	Shell Finish	Voltage Rating	Shielding	Features	Current Rating (Amps)	Termination	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Contact Shape	Note	Contact Size	Housing Color	Type	Contact Type	Insert Material	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Number of Positions	Contact Material	Applications	Fastening Type
Amphenol Sine Systems Corp MA7CAE1700S-S3-KIT	Free Hanging (In-Line)	M23-17	Silver	Metal	-20 C	130 °C	Zinc Die Cast	Female Sockets Plug	IP67 - Dust Tight Waterproof	N	Nickel	125 VAC	Shielded	Backshell Coupling Nut	9 A	Crimp	Gold
Amphenol Sine Systems Corp MA7CAE1200-S2-KIT	Free Hanging (In-Line)	M23-12	Silver	Metal	-20 C	130 °C	Zinc Die Cast	Male Pins Plug	IP67 - Dust Tight Waterproof	N	Nickel	160 V	Shielded	Backshell Coupling Nut	10 A	Crimp	Gold	12
Amphenol Sine Systems Corp MA7CAE1200-S2	Free Hanging (In-Line)	M23-12			-20 C	130 °C	Zinc Die Cast	Plug Housing	IP67 - Dust Tight Waterproof	N	Nickel		Shielded	Backshell Coupling Nut				12	UL94 V-0	Circular	Contacts Not Included	1 mm	Silver	For Female Sockets or Male Pins	Crimp	Polyamide (PA66) Nylon 6/6
Amphenol Sine Systems Corp MA7CAE1700-S2	Free Hanging (In-Line)	M23-17			-20 C	130 °C	Zinc Die Cast	Plug Housing	IP67 - Dust Tight Waterproof	N	Nickel		Shielded	Backshell Coupling Nut					UL94 V-0	Circular	Contacts Not Included	1 mm	Silver	For Female Sockets or Male Pins	Crimp	Polyamide (PA66) Nylon 6/6
Amphenol Sine Systems Corp MA7CAE1600S-S2-KIT	Free Hanging (In-Line)	M23-16	Silver	Metal	-20 C	130 °C	Zinc Die Cast	Female Sockets Plug	IP67 - Dust Tight Waterproof	E	Nickel	125 VAC	Shielded	Backshell Coupling Nut	9 A	Crimp	Gold		UL94 V-0							Polyamide (PA66) Nylon 6/6	Nickel Zinc Die Cast	0.433 in	0.295 in	7.5 mm	11 mm	16	Copper Alloy	Communication Systems Industrial Medical	Push-Twist
Amphenol Sine Systems Corp MA7CAE1700-S2-KIT	Free Hanging (In-Line)	M23-17	Silver	Metal	-20 C	130 °C	Zinc Die Cast	Male Pins Plug	IP67 - Dust Tight Waterproof	N	Nickel	125 VAC	Shielded	Backshell Coupling Nut	9 A	Crimp	Gold
Amphenol Sine Systems Corp MA7CAE1600-S2-KIT	Free Hanging (In-Line)	M23-16	Silver	Metal	-20 C	130 °C	Zinc Die Cast	Male Pins Plug	IP67 - Dust Tight Waterproof	E	Nickel	125 VAC	Shielded	Backshell Coupling Nut	9 A	Crimp	Gold		UL94 V-0							Polyamide (PA66) Nylon 6/6	Nickel Zinc Die Cast	0.433 in	0.295 in	7.5 mm	11 mm	16	Copper Alloy	Communication Systems Industrial Medical	Push-Twist
Amphenol Sine Systems Corp MA7CAE1200-S1-KIT	Free Hanging (In-Line)	M23-12	Silver	Metal	-20 C	130 °C	Zinc Die Cast	Male Pins Plug	IP67 - Dust Tight Waterproof	N	Nickel	160 V	Shielded	Backshell Coupling Nut	10 A	Crimp	Gold	12
Amphenol Sine Systems Corp MA7CAE1200S-S3-KIT	Free Hanging (In-Line)	M23-12	Silver	Metal	-20 C	130 °C	Zinc Die Cast	Female Sockets Plug	IP67 - Dust Tight Waterproof	N	Nickel	160 V	Shielded	Backshell Coupling Nut	10 A	Crimp	Gold	12
