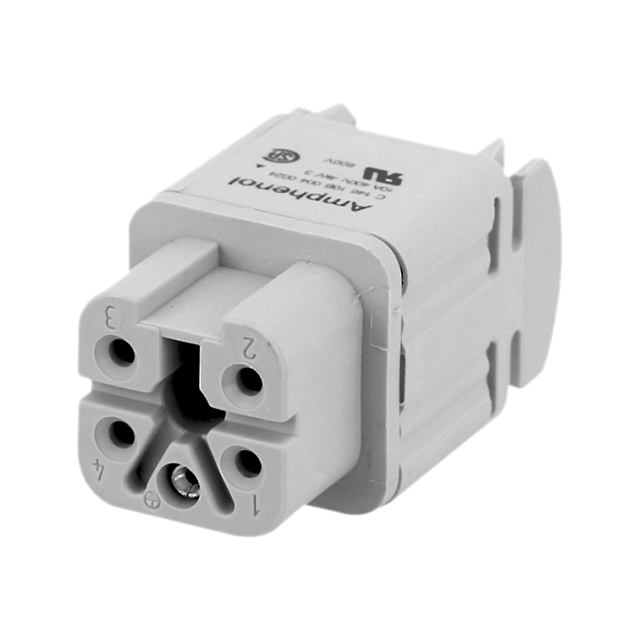

C14610B0040024
ActiveAmphenol Tuchel Industrial
INSERT FEMALE 4POS+1GND SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C14610B0040024
ActiveAmphenol Tuchel Industrial
INSERT FEMALE 4POS+1GND SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C14610B0040024 |
|---|---|
| Contact Finish | Silver |
| Contact Material | Brass |
| Current Rating (Amps) | 14 A |
| Gender | Female |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 4+Ground |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | A3/4 |
| Termination Style | Screw |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.20 | |
| 10 | $ 10.37 | |||
| 30 | $ 9.59 | |||
| 50 | $ 9.25 | |||
| 100 | $ 8.81 | |||
| 250 | $ 8.26 | |||
| 500 | $ 7.86 | |||
| 1000 | $ 7.49 | |||
Description
General part information
C14610B004 Series
Female Insert 4+Ground Position Screw
