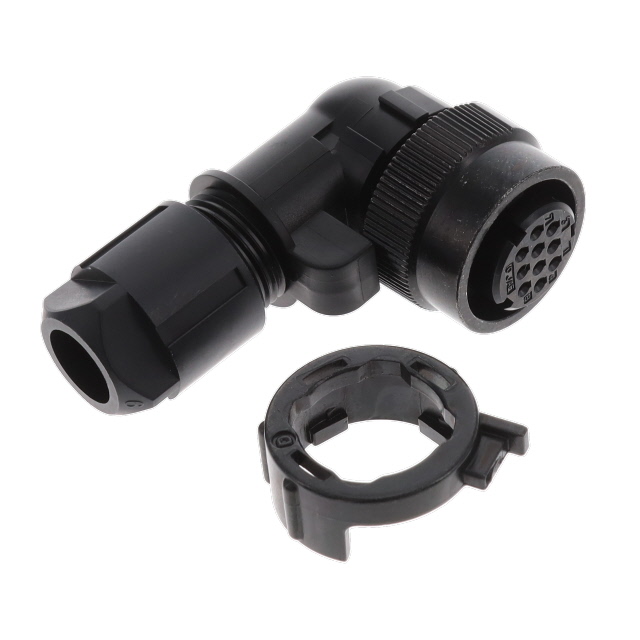

JN2VFS10SL1

Active

JAE Electronics

CONN PLG HSG FMALE 10POS RA

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLG HSG FMALE 10POS RA

Technical Specifications

Parameters and characteristics for this part

Specification	JN2VFS10SL1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Finish	Zinc
Shell Material	Zinc Alloy
Shell Size - Insert	S
Shielding	Unshielded
Type	For Female Sockets

Part	Orientation	Type	Number of Positions	Mounting Type	Contact Type	Contact Size	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Size - Insert	Note	Shell Material	Ingress Protection	Connector Type	Housing Color	Fastening Type	Shell Finish	Features	Contact Shape
JAE Electronics JN2VFS10SL1	N	For Female Sockets	10	Free Hanging (In-Line) Right Angle	Crimp	22	Synthetic Resin	-20 C	125 °C	Unshielded	S	Contacts Not Included	Zinc Alloy	IP67 - Dust Tight Waterproof	Plug Housing	Black	Push-Twist	Zinc	Backshell Coupling Nut	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
