1-1971775-6
ActiveTE Connectivity AMP Connectors

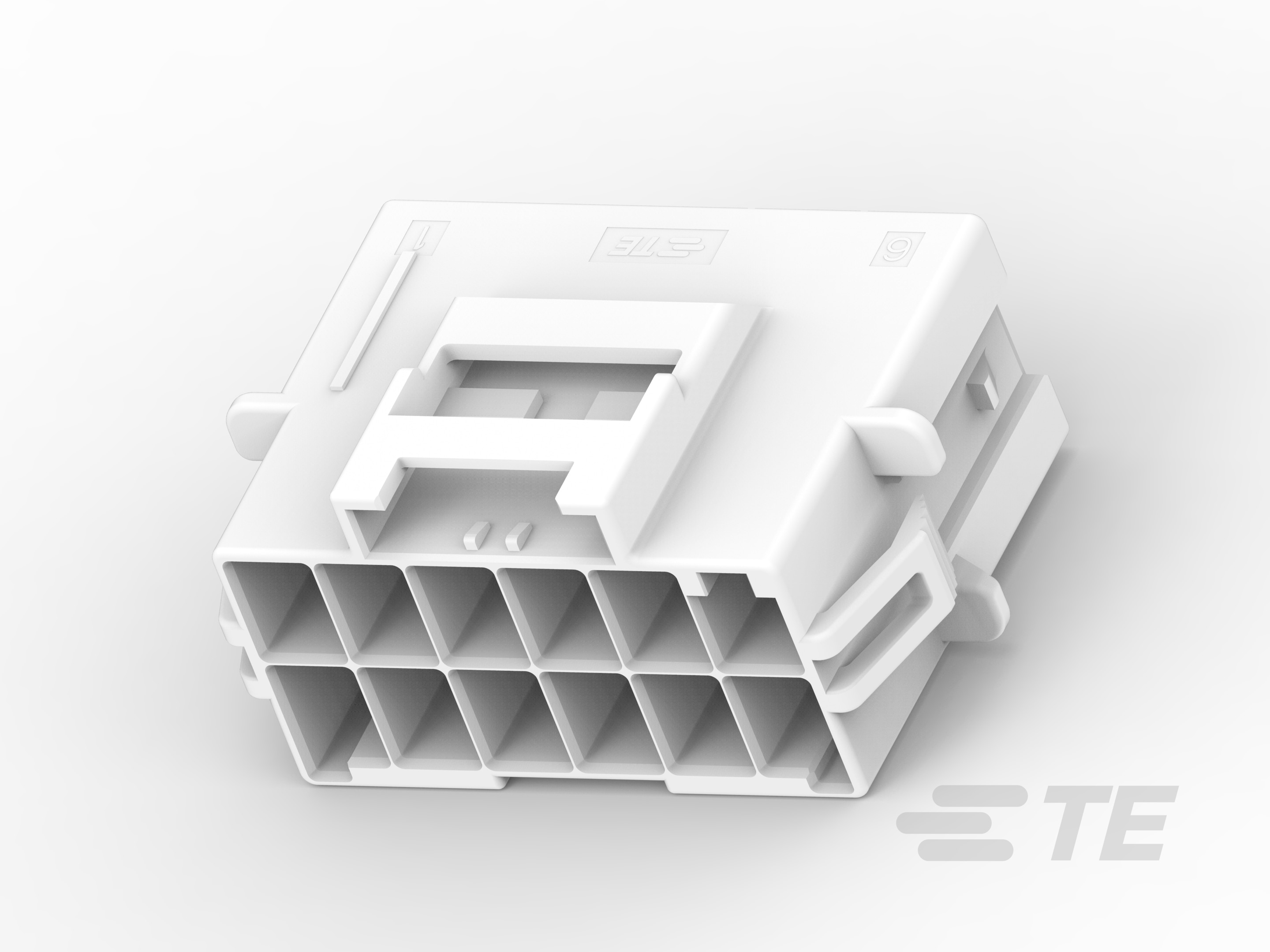

PTL 2X6 CAP PANEL MT STD TEMP KEY A NAT
1-1971775-6
ActiveTE Connectivity AMP Connectors
PTL 2X6 CAP PANEL MT STD TEMP KEY A NAT
Description
General part information
1971775 Series
12 Position, Cap, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6 mm [.236 in] Centerline, 2 Row, 600 VAC, Wire & Cable, Power, Power Triple Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1971775-6 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Holder, Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.236 in |
| Row Spacing | 0.319 in |
