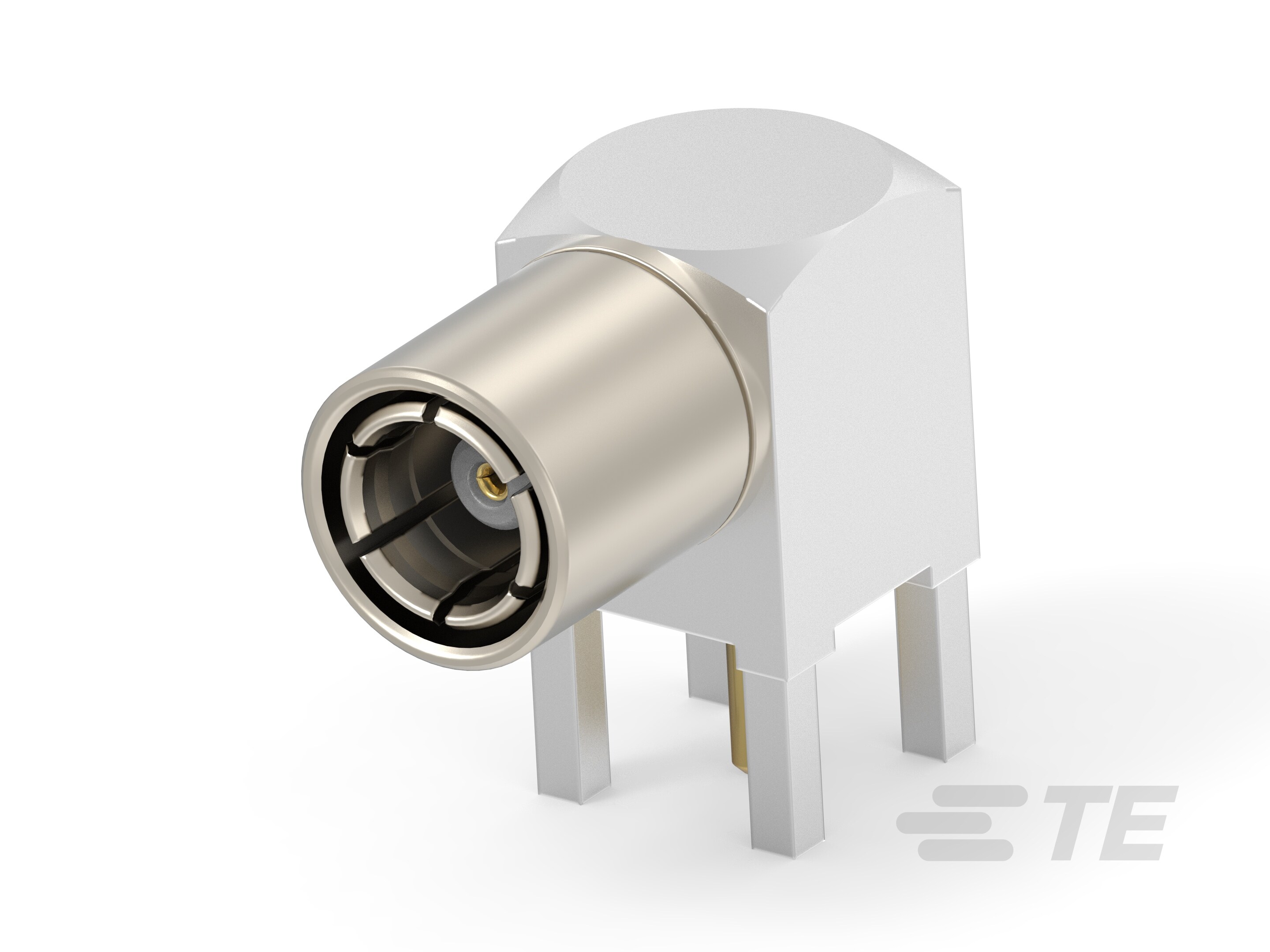

Specification	2466281-1

Body Finish	Tin
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

2466281 Series

Part	Dielectric Material	Body Material	Body Finish	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Connector Style	Number of Ports	Frequency - Max	Connector Type	Impedance	Shield Termination	Center Contact Material	Fastening Type	Contact Termination	Housing Color	Mounting Type
TE Connectivity AMP Connectors 2466281-1	Polytetrafluoroethylene (PTFE)	Brass	Tin	500 cycles	-65 °C	165 °C	Gold	SMB	1	6000 MHz	Female Socket Plug	50 Ohm	Solder	Beryllium Copper	Snap-On	Solder	Silver	Right Angle Through Hole
