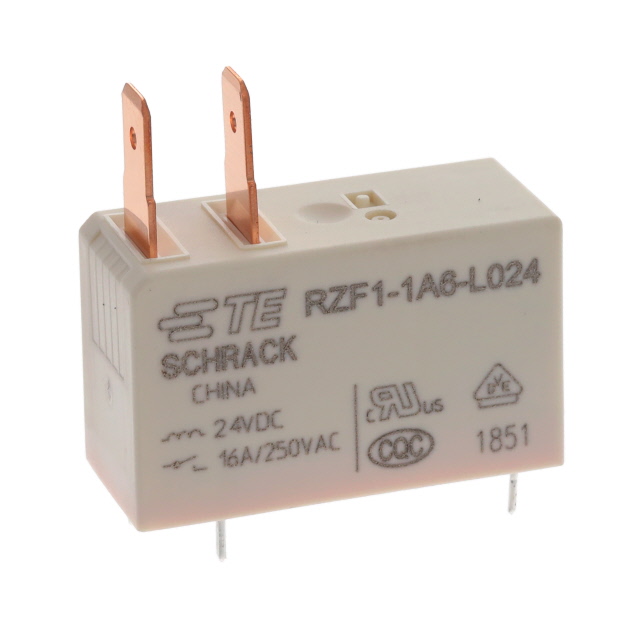

RZF1-1A6-L024
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
RZF1-1A6-L024
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RZF1-1A6-L024 |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 22.1 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1.09 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | 4.7 mm, 0.187 in |
| Termination Style | Quick Connect, PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RZF1-1A6 Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
