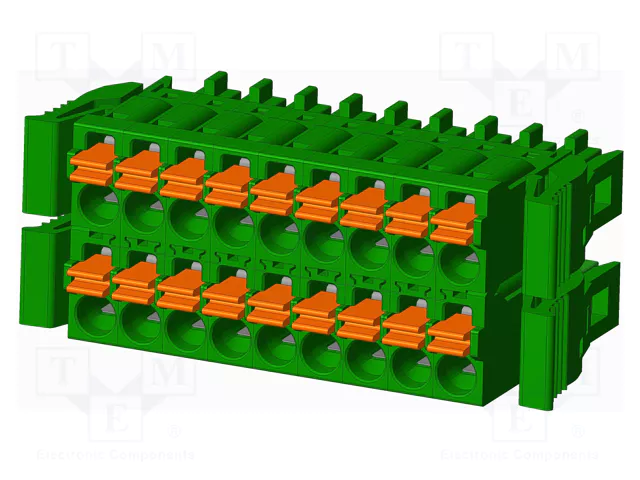

Specification	KD181051A000G

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	5.5 A
Housing Material	Thermoplastic
Insulation Height	0.634 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	2
Number of Positions	18
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.138 in
Plug Wire Entry Angle	180 °
Positions Per Level	9
Termination Style	Screwless - Leg Spring, Push-In Spring
Type	Female Sockets, Plug
Voltage - UL	160 V
Wire Gauge or Range - AWG (Max)	24 AWG
Wire Gauge or Range - AWG (Min)	16 AWG
Wire Strip Length (Max)	10 mm
Wire Strip Length (Min)	9 mm

KD18 Series

Part	Termination Style	Voltage - UL	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Type	Plug Wire Entry Angle	Number of Positions	Features	Number of Levels	Pitch	Mounting Type	Color	Current - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Positions Per Level	Insulation Height	Contact Material	Housing Material	Wire Strip Length (Min)	Wire Strip Length (Max)	Material Flammability Rating
McGill Microwave Systems KD181052A000G	Push-In Spring Screwless - Leg Spring	160 V	Tin	-40 °C	115 °C	Female Sockets Plug	180 °	18	Latch Lock	2	0.138 in	Free Hanging (In-Line)	Green	5.5 A	24 AWG	16 AWG	9	0.634 in	Phosphor Bronze	Thermoplastic	9 mm	10 mm	UL94 V-0
McGill Microwave Systems KD181051A000G	Push-In Spring Screwless - Leg Spring	160 V	Tin	-40 °C	115 °C	Female Sockets Plug	180 °	18		2	0.138 in	Free Hanging (In-Line)	Green	5.5 A	24 AWG	16 AWG	9	0.634 in	Phosphor Bronze	Thermoplastic	9 mm	10 mm	UL94 V-0
McGill Microwave Systems KD1830500000G	Push-In Spring Screwless - Leg Spring	300 V	Tin	-40 °C	115 °C	Female Sockets Plug	180 °	18		1	0.15 in	Free Hanging (In-Line)	Green	5.5 A	24 AWG	16 AWG	18	0.307 in	Phosphor Bronze	Thermoplastic	9 mm	10 mm	UL94 V-0
McGill Microwave Systems KD1810500000G	Push-In Spring Screwless - Leg Spring	160 V	Tin	-40 °C	115 °C	Female Sockets Plug	180 °	18		1	0.138 in	Free Hanging (In-Line)	Green	5.5 A	24 AWG	16 AWG	18	0.307 in	Phosphor Bronze	Thermoplastic	9 mm	10 mm	UL94 V-0
McGill Microwave Systems KD1870510000G	Push-In Spring Screwless - Leg Spring	300 V	Tin	-40 °C	115 °C	Female Sockets Plug	180 °	18	Mating Flange Retention Latches (Wire Side)	1	0.197 in	Free Hanging (In-Line)	Green	12 A	24 AWG	14 AWG	18	0.429 in	Phosphor Bronze	Thermoplastic	11 mm	12 mm	UL94 V-0
