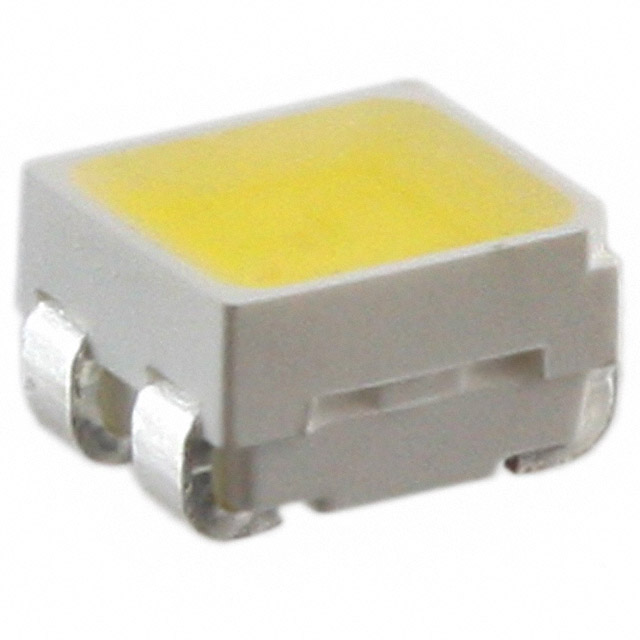

Specification	CLA1B-MKW-XD0F0A73

Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max	80 mA
Current - Test	30 mA
Flux (Maximum)	14 lm
Flux (Minimum)	6 lm
Flux (Nominal)	10 lm
Height - Seated (Max)	0.083 in
Lumens/Watt	39 lm/W
Mounting Type	Surface Mount
Package / Case	4-PLCC
Package Name	4-PLCC
Size / Dimension Length	0.126 in
Size / Dimension Width	0.11 in
Thermal Resistance of Package	120 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.2 V

CLA1B Series

Part	Thermal Resistance of Package	Current - Max	Flux (Minimum)	Flux (Maximum)	Flux (Nominal)	Mounting Type	Color	Lumens/Watt	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Test	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length	Package / Case	Package Name	CRI (Color Rendering Index) (Typ)	CCT (K)	CRI (Color Rendering Index)
CreeLED, Inc. CLA1B-WKW-XE0F0E23	120 °C/W	80 mA	8 lm	14 lm	11 lm	Surface Mount	Cool White	43 lm/W	3.2 V	120 °	30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC
CreeLED, Inc. CLA1B-MKW-XD0E0A53	120 °C/W	80 mA	6 lm	11 lm	9 lm	Surface Mount	Warm White	94 lm/W	3.2 V		30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC	80	3600 K
CreeLED, Inc. CLA1B-MKW-XD0F0A43	120 °C/W	80 mA	6 lm	14 lm	10 lm	Surface Mount	Warm White	39 lm/W	3.2 V	120 °	30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC			80
CreeLED, Inc. CLA1B-MKW-XD0F0E73	120 °C/W	80 mA	6 lm	14 lm	10 lm	Surface Mount	Warm White	39 lm/W	3.2 V	120 °	30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC			80
CreeLED, Inc. CLA1B-WKW-XD0F0DZ3	120 °C/W	80 mA	6 lm	14 lm	10 lm	Surface Mount	Cool White	105 lm/W	3.2 V	120 °	30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC			75
CreeLED, Inc. CLA1B-MKW-XD0E0A73	120 °C/W	80 mA	6 lm	11 lm	9 lm	Surface Mount	Warm White	94 lm/W	3.2 V		30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC	80	3600 K
CreeLED, Inc. CLA1B-MKW-XD0F0A73	120 °C/W	80 mA	6 lm	14 lm	10 lm	Surface Mount	Warm White	39 lm/W	3.2 V	120 °	30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC			80
CreeLED, Inc. CLA1B-MKW-XD0F0E63	120 °C/W	80 mA	6 lm	14 lm	10 lm	Surface Mount	Warm White	39 lm/W	3.2 V	120 °	30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC			80
CreeLED, Inc. CLA1B-MKW-XD0E0F73	120 °C/W	80 mA	6 lm	11 lm	9 lm	Surface Mount	Warm White	94 lm/W	3.2 V		30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC	80	3600 K
CreeLED, Inc. CLA1B-MKW-XD0E0A33	120 °C/W	80 mA	6 lm	11 lm	9 lm	Surface Mount	Warm White	94 lm/W	3.2 V		30 mA	0.083 in	0.11 in	0.126 in	4-PLCC	4-PLCC	80	3600 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CLA1B-MKW-XD0F0A73 | Datasheet
