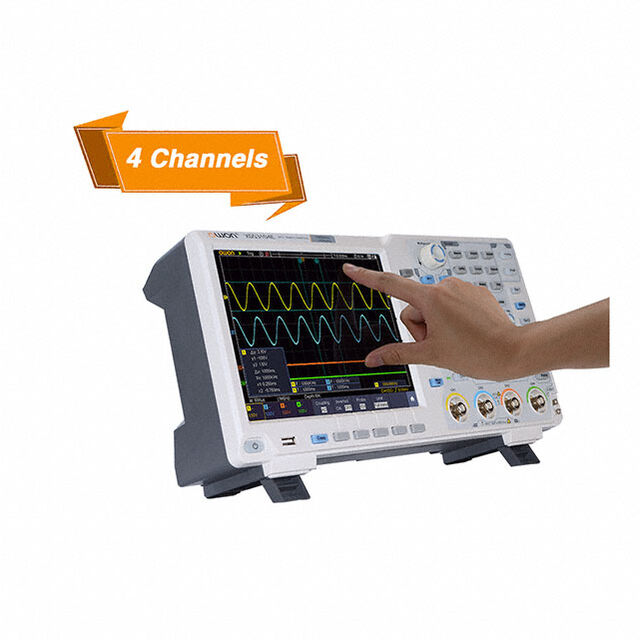

XDS3064AEV

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 60MHZ 4 CH 1GS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 60MHZ 4 CH 1GS/S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 819.00

General part information

60 MHz Bench Oscilloscopes Ethernet, RS232, USB Interface LCD - Color Display 4 Channel CAT II 400V Record

Technical documentation and resources

No documents available

Specification	XDS3064AEV	XDS3064 Series

Bandwidth	60 MHz	60 MHz
Channels	4	4
Display Type	LCD - Color	LCD - Color
Function	Record	Record, DMM
Includes	-	Power Cord, Probe, Test Lead, Manual
Input Impedance	1 M, 15 pF	1 - 15 M
Interface	RS232, Ethernet, USB	Ethernet, USB, Wifi, RS232
Memory Size	-	40 Mpts
Probe Type	-	Passive 10:1 (4)
Rise Time (Typ)	5.8 ns	5.8 ns
Sampling Rate (Per Second)	1 G	1 - 125 G
Type	Bench	Bench
Voltage - Input (Max) [Max]	400 V	400 V
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

Part	Function	Sampling Rate (Per Second)	Interface	Voltage - Input (Max) [Max]	Input Impedance	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Channels	Type	Bandwidth	Rise Time (Typ)	Memory Size	Includes	Probe Type
Owon Technology Lilliput Electronics (USA) Inc XDS3064EMW	Record	1 G	Ethernet, RS232, USB, Wifi	400 V	1 M, 15 pF	100 VAC	240 VAC	LCD - Color	4	Bench	60 MHz	5.8 ns
Owon Technology Lilliput Electronics (USA) Inc XDS3064AEV	Record	1 G	Ethernet, RS232, USB	400 V	1 M, 15 pF	100 VAC	240 VAC	LCD - Color	4	Bench	60 MHz	5.8 ns
Owon Technology Lilliput Electronics (USA) Inc XDS3064AE	DMM, Record	125 M	Ethernet, USB		1 M, 15 pF	100 VAC	240 VAC	LCD - Color	4	Bench	60 MHz	5.8 ns	40 Mpts	Manual, Power Cord, Probe, Test Lead	Passive 10:1 (4)
Owon Technology Lilliput Electronics (USA) Inc XDS3064E	DMM, Record	125 M	Ethernet, USB		1 M, 15 pF	100 VAC	240 VAC	LCD - Color	4	Bench	60 MHz	5.8 ns	40 Mpts	Manual, Power Cord, Probe, Test Lead	Passive 10:1 (4)
