ActiveMill-Max Manufacturing Corp.

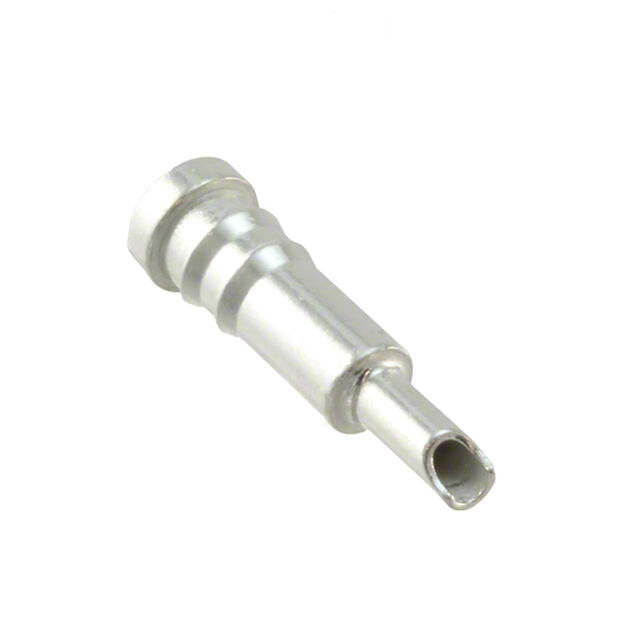

CONN PIN RCPT .065-.082 PRESSFIT
Deep-Dive with AI
Search across all available documentation for this part.
9177-0-18-80-07-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .065-.082 PRESSFIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9177-0-18-80-07-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.082 in |
| Accepts Pin Diameter [Max] [diameter] | 2.08 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.065 in |
| Accepts Pin Diameter [Min] [diameter] | 1.65 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.177 in |
| Flange Diameter [diameter] | 4.5 mm |
| Length - Overall | 15.62 mm |
| Length - Overall | 0.615 in |
| Mounting Hole Diameter [diameter] | 3.84 mm |
| Mounting Hole Diameter [diameter] | 0.151 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 2.72 mm |
| Pin Hole Diameter [diameter] | 0.107 in |
| Socket Depth [custom] | 8.56 mm |
| Socket Depth [custom] | 0.337 " |
| Tail Diameter [diameter] | 2.03 mm |
| Tail Diameter [diameter] | 0.08 in |
| Tail Type | Solder Cup |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.06 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.82 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.71 | |||
| 2500 | $ 0.66 | |||
Description
General part information
9177-0 Series
Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) Solder Cup Press-Fit
