JN2FW05FH1

Active

JAE Electronics

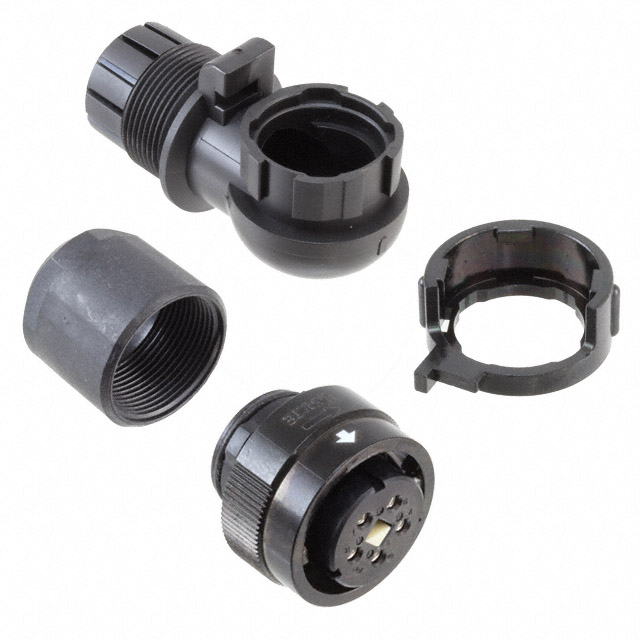

CONN PLUG FMALE 5P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG FMALE 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JN2FW05FH1

Applications	Industrial
Backshell Material, Plating	Synthetic Resin
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	5
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Zinc Alloy
Shell Size - Insert	W
Voltage Rating	400 VAC

Part	Contact Finish - Mating	Backshell Material, Plating	Voltage Rating	Fastening Type	Features	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Applications	Connector Type	Insert Material	Shell Material	Current Rating (Amps)	Primary Material	Ingress Protection	Shell Finish	Mounting Type	Orientation	Number of Positions
JAE Electronics JN2FW05FH1	Silver	Synthetic Resin	400 VAC	Push-Twist	Backshell Coupling Nut Rotatable	Black	Copper Alloy	100 °C	-20 C	W	Industrial	Female Sockets Plug	Synthetic Resin	Zinc Alloy	13 A	Metal	IP67 - Dust Tight Waterproof	Zinc	Free Hanging (In-Line) Right Angle	N	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (4 Power + PE) Position Circular Connector Plug, Female Sockets Solder Cup
