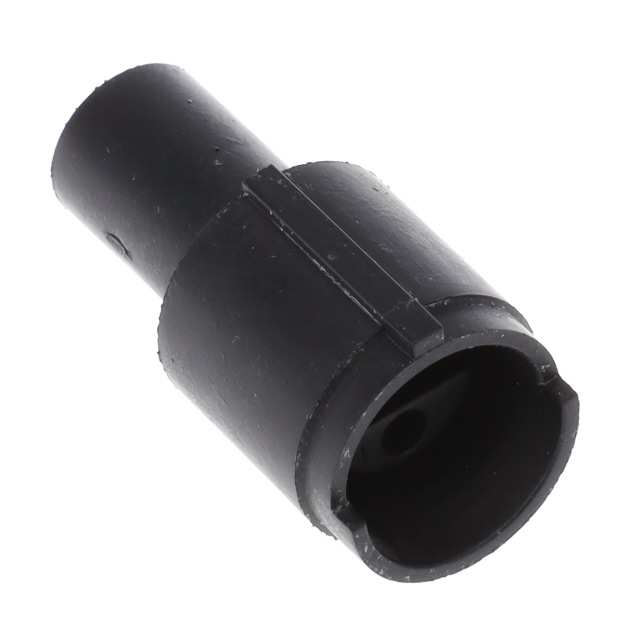

120-8551-001

Active

Sure-Seal Legacy

SS-3R GSS BLK

Deep-Dive with AI

Search across all available documentation for this part.

120-8551-001

Active

Sure-Seal Legacy

SS-3R GSS BLK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	120-8551-001	120-8 Series

Connector Type	Receptacle Housing	Receptacle Housing, Plug Housing
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Push-Pull	Push-Pull
Housing Color	Black	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	2 - 10
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Shell Material	Rubber	Rubber
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins, For Female Sockets

120-8 Series

SS-4R GSS BLK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Number of Positions	Fastening Type	Note	Housing Color	Connector Type	Type	Orientation	Ingress Protection	Contact Shape	Contact Type	Shielding	Mounting Type
Sure-Seal Legacy 120-8551-002	-40 °C	105 ░C	Rubber	4	Push-Pull	Contacts Not Included	Black	Receptacle Housing	For Male Pins	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8552-007	-40 °C	105 ░C	Rubber	7	Push-Pull	Contacts Not Included	Black	Plug Housing	For Female Sockets	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8552-001	-40 °C	105 ░C	Rubber		Push-Pull	Contacts Not Included	Black	Plug Housing	For Female Sockets	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8551-000	-40 °C	105 ░C	Rubber	2	Push-Pull	Contacts Not Included	Black	Receptacle Housing	For Male Pins	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8552-000	-40 °C	105 ░C	Rubber	2	Push-Pull	Contacts Not Included	Black	Plug Housing	For Female Sockets	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8551-310	-40 °C	105 ░C	Rubber	10	Push-Pull	Contacts Not Included	Black	Receptacle Housing	For Male Pins	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8551-007	-40 °C	105 ░C	Rubber	7	Push-Pull	Contacts Not Included	Black	Receptacle Housing	For Male Pins	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8552-002	-40 °C	105 ░C	Rubber	4	Push-Pull	Contacts Not Included	Black	Plug Housing	For Female Sockets	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8551-001	-40 °C	105 ░C	Rubber		Push-Pull	Contacts Not Included	Black	Receptacle Housing	For Male Pins	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)
Sure-Seal Legacy 120-8552-310	-40 °C	105 ░C	Rubber	10	Push-Pull	Contacts Not Included	Black	Plug Housing	For Female Sockets	Keyed	IP67 - Dust Tight, Waterproof	Circular	Crimp	Unshielded	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.57
		10	$ 8.61
		25	$ 8.11
		50	$ 7.91
		100	$ 7.70
		250	$ 6.87
		500	$ 6.45
		1000	$ 5.70

Description

General part information

120-8 Series

3 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
