Specification	AD8132AR-REEL7

-3db Bandwidth	360 MHz
Amplifier Type	Differential
Current - Input Bias	3 µA
Current - Output / Channel	70 mA
Current - Supply	12 mA
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Type	Differential
Package Length	0.154 in
Package Name	8-SOIC
Package Width	3.9 mm
Slew Rate	1200 V/µs
Voltage - Input Offset	1 mV
Voltage - Supply Span (Max)	11 V
Voltage - Supply Span (Min)	2.7 V

AD8132 Series

Part	Output Type	Number of Circuits	Mounting Type	-3db Bandwidth	Slew Rate	Current - Output / Channel	Voltage - Input Offset	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply Span (Max)	Current - Supply	Package Length	Package Width	Current - Input Bias	Amplifier Type	Voltage - Supply Span (Min)	Grade	Board Type	Supplied Contents	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated AD8132AR-REEL7	Differential	1	Surface Mount	360 MHz	1200 V/µs	70 mA	1 mV	8-SOIC	125 °C	-40 °C	11 V	12 mA	0.154 in	3.9 mm	3 µA	Differential	2.7 V
Analog Devices Inc./Maxim Integrated AD8132WARMZ-R7	Differential	1	Surface Mount	360 MHz	1200 V/µs	70 mA	1 mV	8-MSOP 8-TSSOP 8-MSOP	125 °C	-40 °C	11 V	12 mA	0.118 in	3 mm	3 µA	Differential	2.7 V	Automotive
Analog Devices Inc./Maxim Integrated AD8132ARMZ	Differential	1	Surface Mount	360 MHz	1200 V/µs	70 mA	1 mV	8-MSOP 8-TSSOP 8-MSOP	125 °C	-40 °C	11 V	12 mA	0.118 in	3 mm	3 µA	Differential	2.7 V

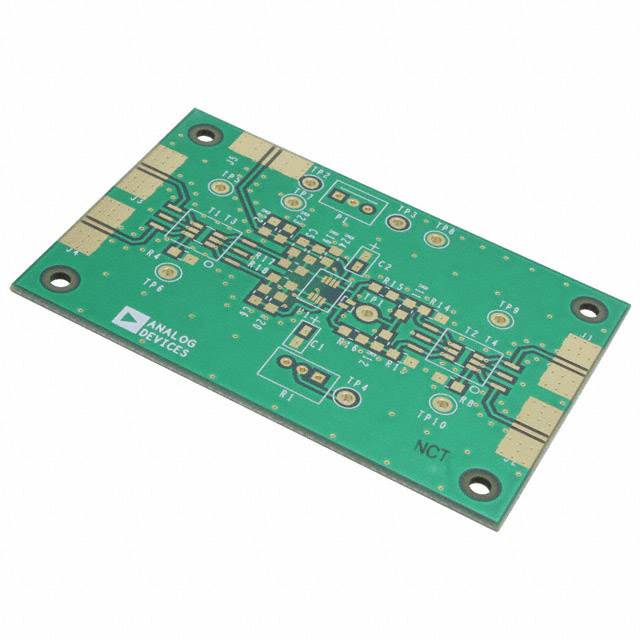

Analog Devices Inc./Maxim Integrated AD8132ARM-EBZ																Differential			Bare (Unpopulated)	Board(s)	1	Single	1	8-MSOP Package	Unpopulated (Bare) Board
Analog Devices Inc./Maxim Integrated AD8132ARMZ-REEL	Differential	1	Surface Mount	360 MHz	1200 V/µs	70 mA	1 mV	8-MSOP 8-TSSOP 8-MSOP	125 °C	-40 °C	11 V	12 mA	0.118 in	3 mm	3 µA	Differential	2.7 V
Analog Devices Inc./Maxim Integrated AD8132ARZ	Differential	1	Surface Mount	360 MHz	1200 V/µs	70 mA	1 mV	8-SOIC	125 °C	-40 °C	11 V	12 mA	0.154 in	3.9 mm	3 µA	Differential	2.7 V
Analog Devices Inc./Maxim Integrated AD8132AR-REEL	Differential	1	Surface Mount	360 MHz	1200 V/µs	70 mA	1 mV	8-SOIC	125 °C	-40 °C	11 V	12 mA	0.154 in	3.9 mm	3 µA	Differential	2.7 V
