Specification	SF1132-6027

Adapter Series	SMPM to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	Male Pin, SMPM Plug
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Full Detent
Frequency - Max	18 GHz
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Style	Straight

SF1132 Series

Part	Mating Cycles	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Material	Body Material	Convert To (Adapter End) Size	Convert To (Adapter End) Model	Convert To (Adapter End)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Style	Center Gender	Center Contact Plating	Mounting Type	Conversion Type	Convert From (Adapter End)	Fastening Type	Frequency - Max	Adapter Type	Impedance	Adapter Series	Adapter Series Size	Features	Body Finish	Features - Positions

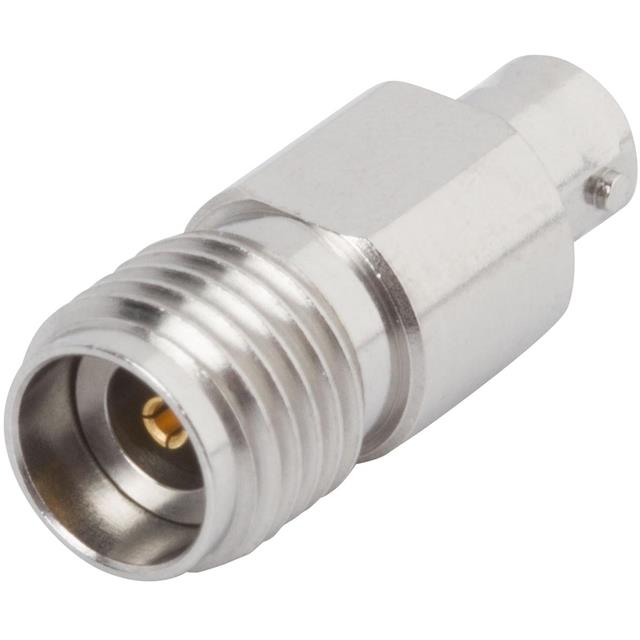

McGill Microwave Systems SF1132-6078	500 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Beryllium Copper	Stainless Steel	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Straight	Female Male	Gold	Free Hanging (In-Line)	Between Series	Male Pin SMPM Plug	Bayonet Lock Threaded	40 Gbps	Plug to Jack	50 Ohm	SMPM	2.92 mm

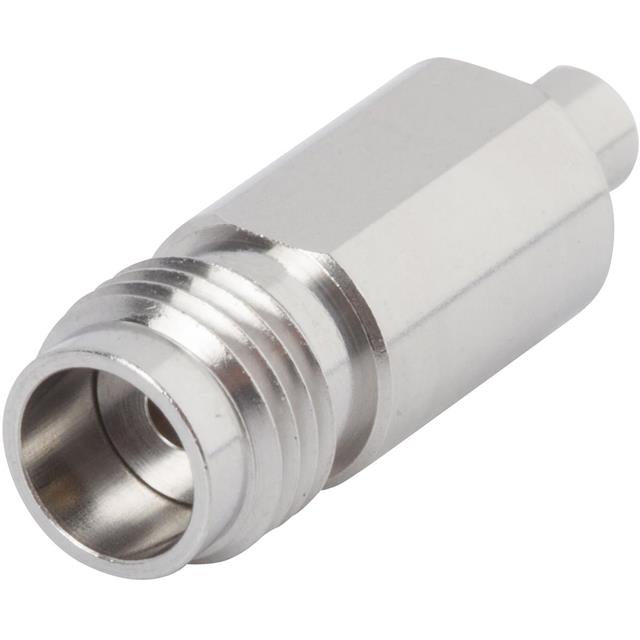

McGill Microwave Systems SF1132-6070	500 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Beryllium Copper	Stainless Steel				1.85mm Jack	Female Socket	Straight	Female Male	Gold	Free Hanging (In-Line)	Between Series	Male Pin SMPM Plug	Snap-On Threaded	65 GHz	Plug to Jack	50 Ohm	SMPM	1.85 mm	Smooth Bore
McGill Microwave Systems SF1132-6036	100 cycles	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Beryllium Copper	Beryllium Copper				SMPM Plug	Male Pin		Male	Gold		Same Series	Male Pin SMPM Plug	Snap-On	26.5 GHz	Plug to Plug	50 Ohm	SMPM to SMPM		Position	Gold	8 positions
McGill Microwave Systems SF1132-6027	100 cycles	Polytetrafluoroethylene (PTFE)			Beryllium Copper	Stainless Steel				SMA Jack	Female Socket	Straight	Female Male	Gold	Free Hanging (In-Line)	Between Series	Male Pin SMPM Plug	Snap-On Threaded	18 GHz	Plug to Jack	50 Ohm	SMPM to SMA		Full Detent
McGill Microwave Systems SF1132-6069	500 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Beryllium Copper	Stainless Steel				1.85mm Jack	Female Socket	Straight	Female Male	Gold	Free Hanging (In-Line)	Between Series	Male Pin SMPM Plug	Snap-On Threaded	65 GHz	Plug to Jack	50 Ohm	SMPM	1.85 mm	Full Detent
