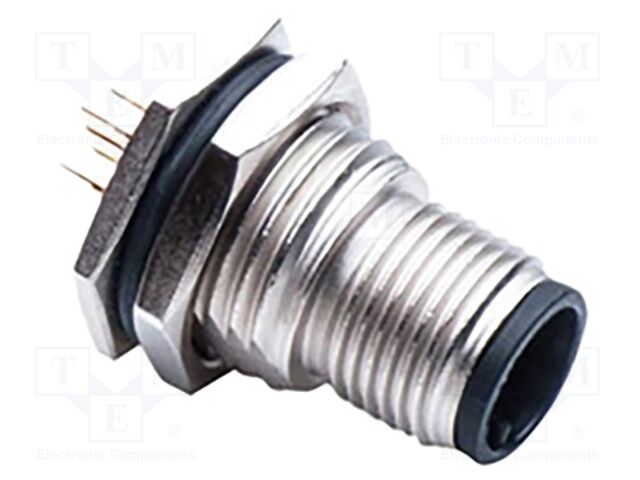

Specification	M12A-12PMMP-EE0001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	2 A
Fastening Type	Threaded
Features	Board Guide
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	12
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-12
Shielding	Unshielded, Shielded
Termination	Solder
Voltage Rating	30 V

M12A-12PMMP Series

Part	Shielding	Shell Finish	Contact Finish - Mating	Mounting Type	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Color	Shell Size - Insert	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Termination	Orientation	Features	Fastening Type	Shell Material	Current Rating	Primary Material	Contact Material	Insert Material	Mounting Feature	Voltage Rating (Type)	Backshell Material, Plating
McGill Microwave Systems M12A-12PMMP-EE0001	Shielded Unshielded	Nickel	Gold	Through Hole	30 V	-40 °C	105 °C	12	Silver	M12-12	Male Pins Receptacle	Dust Tight Waterproof	IP67	Solder	A	Board Guide	Threaded	Zinc Alloy	2 A	Metal	Copper Alloy	Thermoplastic
McGill Microwave Systems M12A-12PMMP-SF8001	Shielded Unshielded	Nickel	Gold	Panel Mount Through Hole	30 V	-40 °C	105 °C	12	Silver	M12-12	Male Pins Receptacle	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	A		Threaded	Zinc Alloy	1.5 A	Metal	Copper Alloy	Glass Filled Nylon PA Polyamide	Bulkhead Front Side Nut	AC DC	Copper Alloy
McGill Microwave Systems M12A-12PMMP-SF8002	Unshielded	Nickel	Gold	Panel Mount Through Hole	30 V	-40 °C	105 °C	12	Silver	M12-12	Male Pins Receptacle	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder	A		Threaded	Zinc Alloy	1.5 A	Metal	Copper Alloy	Glass Filled Nylon PA Polyamide	Bulkhead Front Side Nut	AC DC
