151244-8422-RB

Active

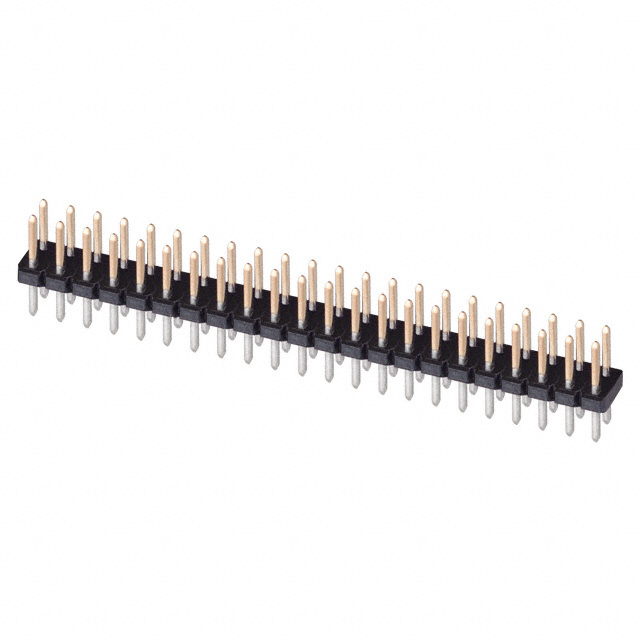

CONN HEADER VERT 44POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER VERT 44POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	151244-8422-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	3.86 mm
Contact Length - Mating	0.152 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.36 mm
Overall Contact Length	0.329 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

CONN HEADER VERT 44POS 2MM

Part	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Material	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Rows	Contact Shape	Style	Overall Contact Length	Overall Contact Length	Shrouding	Termination	Contact Type	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Color
3M 151244-8422-RB	UL94 V-0	0.118 in	3 mm	0.06 in	1.52 mm	200 µin	5.08 µm	Gold	Copper Alloy	Push-Pull	0.079 in	2 mm	30 Áin	0.76 Ám	Header	Through Hole	3.86 mm	0.152 in	All	105 ░C	-55 °C	44	2	Square	Board to Board, Cable	8.36 mm	0.329 in	Unshrouded	Solder	Male Pin	Tin	0.079 in	2 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 44 position 0.079" (2.00mm)
