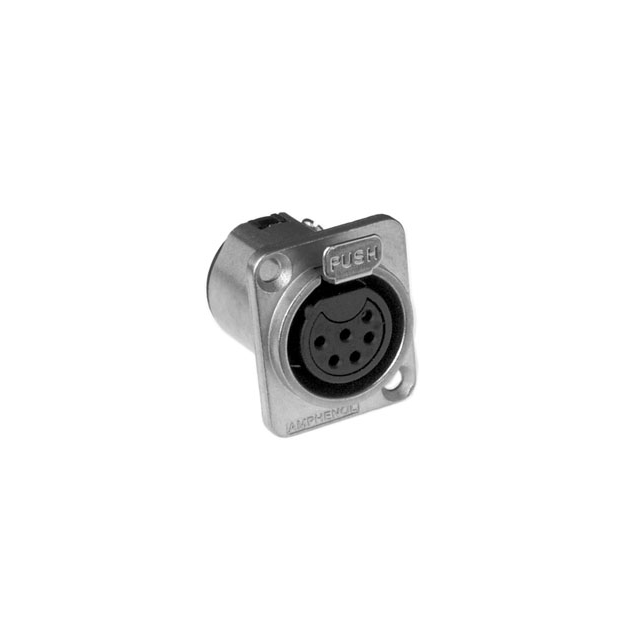

Specification	AC6AFDZ

Applications	Audio
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Tin
Contact Material	Phosphor Bronze
Current Rating	7.5 A
Fastening Type	Latch Lock
Features	Ground
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	6
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded
Termination	Solder Cup

AC6AF Series

Part	Contact Finish - Mating	Material Flammability Rating	Connector Type	Contact Material	Shell Material	Shielding	Backshell Material, Plating	Fastening Type	Features	Shell Size - Insert	Mounting Type	Current Rating	Orientation	Applications	Ingress Protection	Number of Positions	Primary Material	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Shell Finish	Cable Opening (Max)	Cable Opening (Min)	Color	Mounting Feature
McGill Microwave Systems AC6AFB BULK	Silver	UL94 V-0	Female Sockets Plug	Brass	Zinc Die Cast	Unshielded	Polyphenylene Ether (PPE)	Latch Lock	Backshell Cable Clamp	XLR	Free Hanging (In-Line)	7.5 A	Keyed	Audio	IP40	6	Metal	Solder Cup	-25 °C	75 °C	Black	0.255 in	0.118 in	Black
McGill Microwave Systems AC6AFB	Silver	UL94 V-0	Female Sockets Plug	Phosphor Bronze	Zinc Die Cast	Unshielded	Polyphenylene Ether (PPE)	Latch Lock	Backshell Cable Clamp	XLR	Free Hanging (In-Line)	7.5 A	Keyed	Audio	IP40	6	Metal	Solder Cup	-25 °C	75 °C	Black	0.256 in	0.118 in	Black

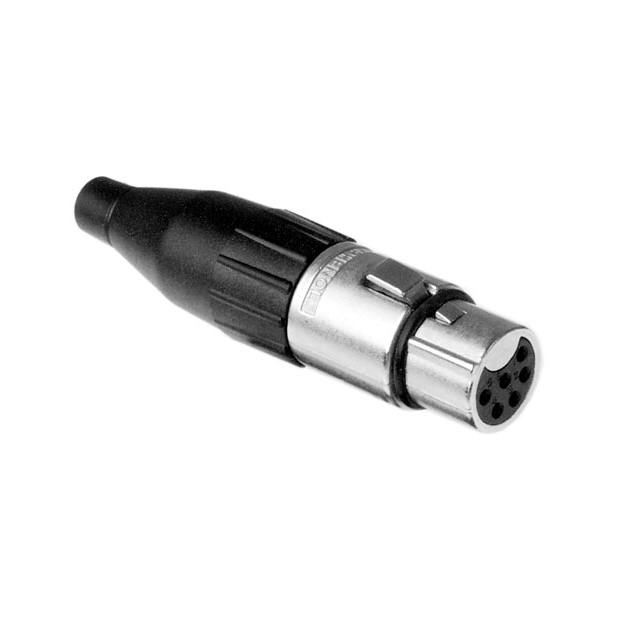

McGill Microwave Systems AC6AF BULK	Silver	UL94 V-0	Female Sockets Plug	Brass	Zinc Die Cast	Unshielded	Polyphenylene Ether (PPE)	Latch Lock	Backshell Cable Clamp	XLR	Free Hanging (In-Line)	7.5 A	Keyed	Audio	IP40	6	Metal	Solder Cup	-25 °C	75 °C	Nickel	0.255 in	0.118 in	Silver
McGill Microwave Systems AC6AFDZ	Tin	UL94 V-0	Female Sockets Plug	Phosphor Bronze	Zinc Die Cast	Shielded		Latch Lock	Ground	XLR	Panel Mount	7.5 A	Keyed	Audio	IP40	6	Metal	Solder Cup	-25 °C	75 °C	Nickel			Silver	Flange
