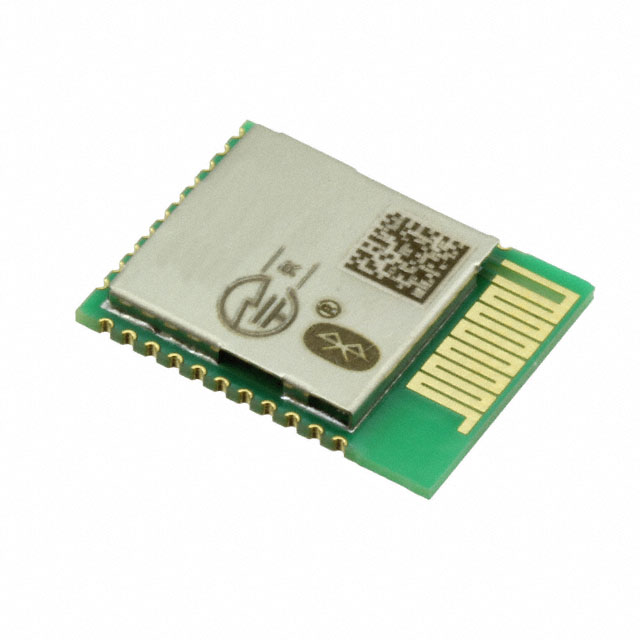

CYBLE-012011-00
ObsoleteInfineon Technologies
RF TXRX MOD BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
CYBLE-012011-00
ObsoleteInfineon Technologies
RF TXRX MOD BT TH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CYBLE-012011-00 |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 16.4 mA |
| Current - Transmitting | 15.6 mA |
| Data Rate | 1 Mbps |
| Frequency [Max] | 2.48 GHz |
| Frequency [Min] | 2.4 GHz |
| Memory Size | 128 kB, 16 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 31-SMD Module |
| Power - Output | 3 dBm |
| Protocol | Bluetooth v4.1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -87 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CYBLE-012011 Series
Bluetooth Bluetooth v4.1 Transceiver Module 2.4GHz ~ 2.48GHz Integrated, Trace Surface Mount
